Air Spring, Rolling Lobe Air Spring, Plastic Base, 11300 lb at 100 psi, 9040 lb at 80 psi, 4.9 in Compressed Length, 19.3 in Extended Length, 13.9 in
#MZHAB1DK25A-8709
Product Overview
Air Spring, Rolling Lobe Air Spring, Plastic Base, 11300 lb at 100 psi, 9040 lb at 80 psi, 4.9 in Compressed Length, 19.3 in Extended Length, 13.9 in, For Hendrickson Trailer
Features & Benefits
- Bumper

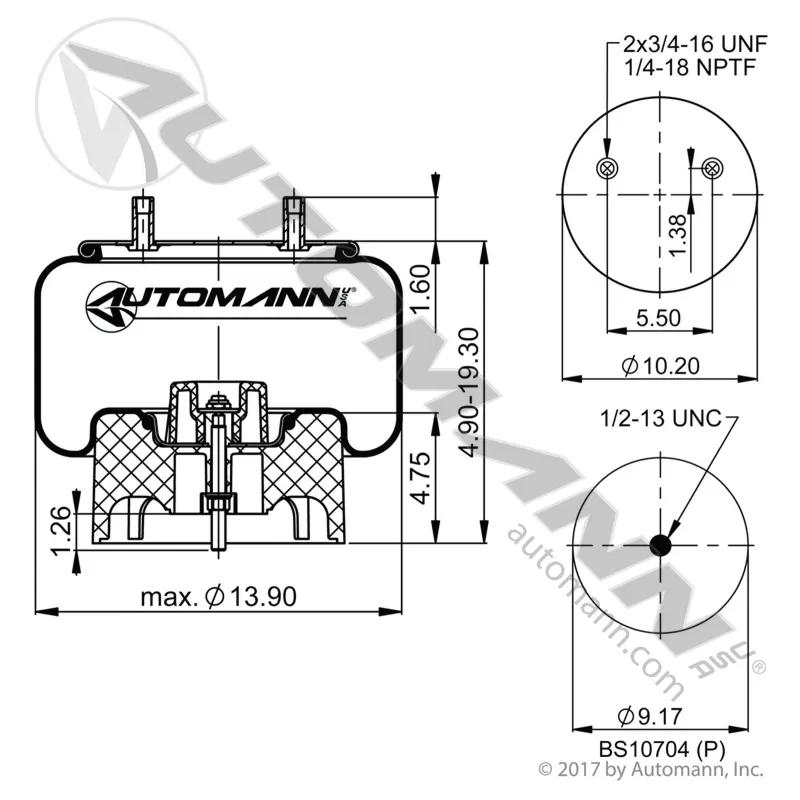

- Bottom plate diameter (C): 9.17
- Bottom plate hole/stud qty: 1
- Top plate C to C diameter (B): 5.5
- Top plate diameter (A): 10.2
- Top plate hole/stud qty: 2
- Plastic bottom plate type
- 1 in design height
- 84 cpm natural frequency
- Bellows#: 6390 Triangle, 11 10.5-15 Contitech, 1T17CA-5, 1T17B-5 Firestone, 1DK25A Automann
Specifications
| Air Spring Type | Rolling Lobe |
| Application | Hendrickson Trailer |
| Bottom Plate Diameter | 9.17 in |
| Bottom Plate Hole/Stud Qty | 1 |
| Bumper | Yes |
| Compressed Length | 4.9 in |
| Contitech Bellow # | 11 10.5-15 |
| Design Height (in.) | 1 in |
| Extended Length | 19.3 in |
| Material | Plastic |
| Plate Type | Plastic |
| Top Plate Diameter | 10.2 in |
| Triangle Bellows Number | 6390 |
| UPC | 889626211782 |
| Weight | 13.7 lbs |
| Capacity | 11300 lbs at 100 psi, 9040 lbs at 80 psi |
| Fitting Size | 13.9 in |
| Manufacturer Part Number | AB1DK25A-8709 |
| Product Category | Air Spring |
Interchanges & Equivalent parts:
| AB1DK25A-8709 |
