Air Spring, Rolling Lobe Air Spring, Plastic Base, 6400 lb at 100 psi, 5100 lb at 80 psi, 7.3 in Compressed Length, 22.1 in Extended Length, 11.7 in
#MZHAB1DK20J-9626
Product Overview
Air Spring, Rolling Lobe Air Spring, Plastic Base, 6400 lb at 100 psi, 5100 lb at 80 psi, 7.3 in Compressed Length, 22.1 in Extended Length, 11.7 in, For Hendrickson Trailer
Features & Benefits
- Bumper

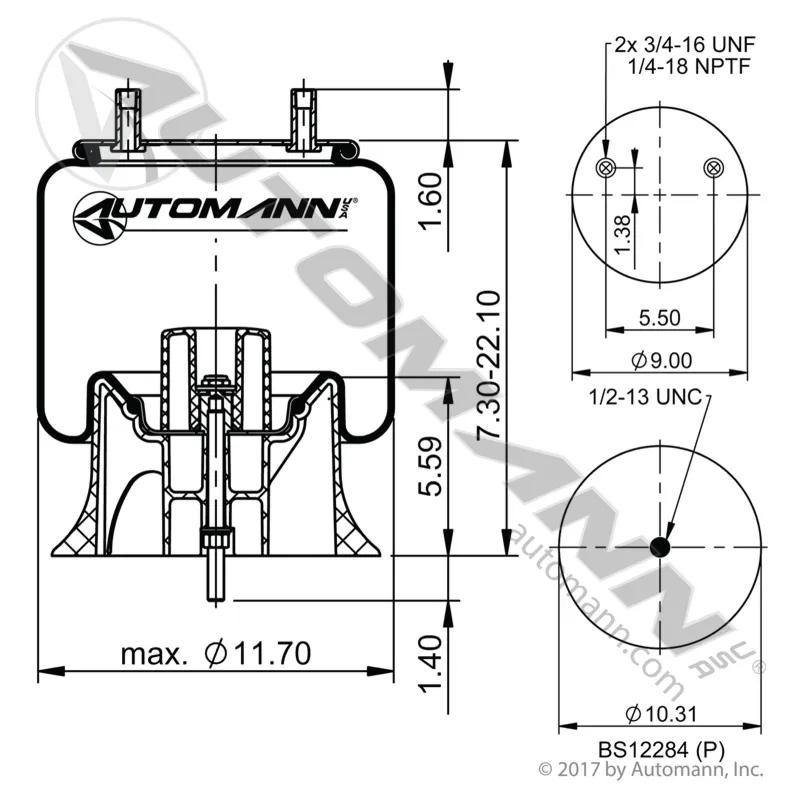

- Bottom plate diameter (C): 10.31
- Bottom plate hole/stud qty: 1
- Top plate C to C diameter (B): 5.5
- Top plate diameter (A): 9
- Top plate hole/stud qty: 2
- Plastic bottom plate type
- 13 in design height
- 72 cpm natural frequency
- Bellows#: 9 9-16 Contitech, 566-22-3-095 Goodyear, 1T15L-6 Firestone, 1DK20J Automann
Specifications
| Air Spring Type | Rolling Lobe |
| Application | Hendrickson Trailer |
| Compressed Length | 7.3 in |
| Extended Length | 22.1 in |
| Material | Plastic |
| UPC | 889626209710 |
| Weight | 13.96 lb |
| Capacity | 6400 lb at 100 psi, 5100 lb at 80 psi |
| Fitting Size | 11.7 in |
| Manufacturer Part Number | AB1DK20J-9626 |
| Product Category | Air Spring |
Interchanges & Equivalent parts:
| AB1DK20J-9626 |
