Air Spring, Rolling Lobe Air Spring, Plastic Base, 7000 lb at 100 psi, 5500 lb at 80 psi, 6 in Compressed Length, 16.7 in Extended Length, 12.6 in
#MZHAB1DK23I-9335
Product Overview
Air Spring, Rolling Lobe Air Spring, Plastic Base, 7000 lb at 100 psi, 5500 lb at 80 psi, 6 in Compressed Length, 16.7 in Extended Length, 12.6 in, For Freightliner, Hendrickson
Features & Benefits
- AB9372P or AB9373P bracket
- Bumper

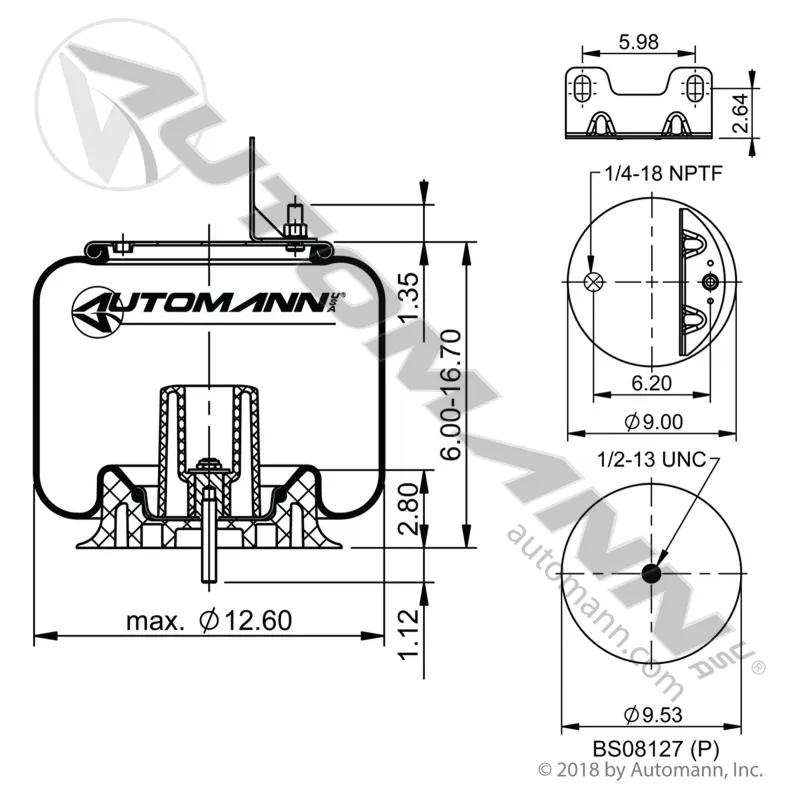

- Bottom plate diameter (C): 9.53
- Bottom plate hole/stud qty: 1
- Top plate C to C diameter (B): 6.2
- Top plate diameter (A): 9
- Top plate hole/stud qty: 2
- Plastic bottom plate type
- 1 in design height
- 69 cpm natural frequency, bellows#: 6362 Triangle, 9 10-13.5 Contitech, 566-24-3-076 Goodyear, 1T15M-4 Firestone, 1DK23I Automann
Specifications
| Air Spring Type | Rolling Lobe |
| Application | Freightliner, Hendrickson |
| Compressed Length | 6 in |
| Extended Length | 16.7 in |
| Material | Plastic |
| UPC | 889626210365 |
| Weight | 12 lb |
| Capacity | 7000 lb at 100 psi, 5500 lb at 80 psi |
| Fitting Size | 12.6 in |
| Manufacturer Part Number | AB1DK23I-9335 |
| Product Category | Air Spring |
Interchanges & Equivalent parts:
| AB1DK23I-9335 |
