Air Spring, Rolling Lobe Air Spring, Plastic Base, 7200 lb at 100 psi, 5700 lb at 80 psi, 7.3 in Compressed Length, 24.6 in Extended Length, 12.6 in
#MZHAB1DK23L-9243
Product Overview
Air Spring, Rolling Lobe Air Spring, Plastic Base, 7200 lb at 100 psi, 5700 lb at 80 psi, 7.3 in Compressed Length, 24.6 in Extended Length, 12.6 in, For SAF Holland/Neway, Watson and Chalin
Features & Benefits
- Bumper

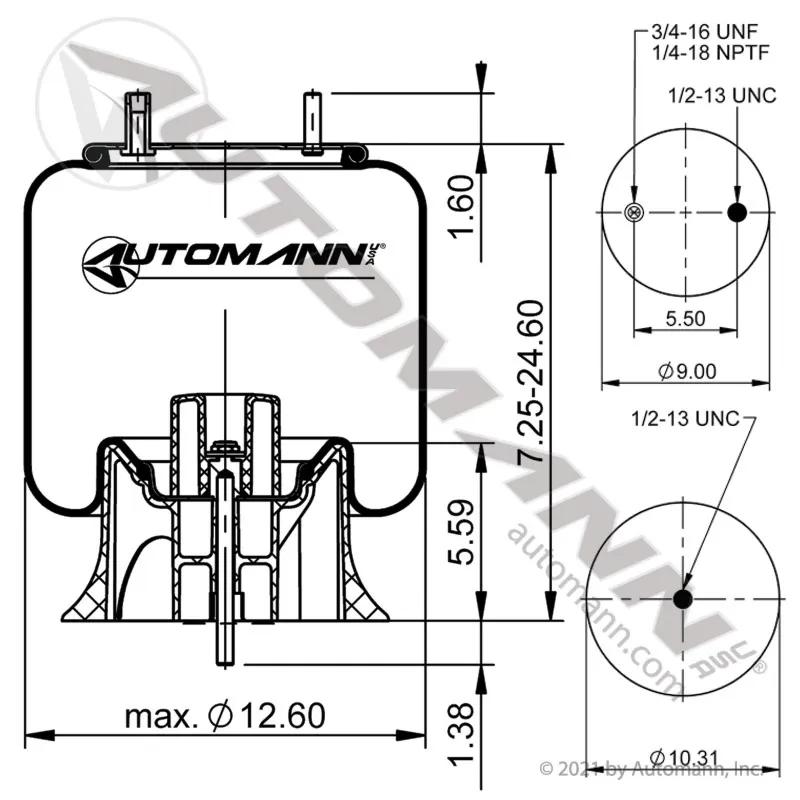

- Bottom plate diameter (C): 10.28
- Bottom plate hole/stud qty: 1
- Top plate C to C diameter (B): 5.5
- Top plate diameter (A): 9
- Top plate hole/stud qty: 2
- Plastic bottom plate type
- 15.5 in design height
- 60 cpm natural frequency
- Bellows#: 6364 Triangle, 9 10-19 Contitech, 566-24-3-066 Goodyear, 1T15M-9 Firestone, 1DK23L Automann
Specifications
| Air Spring Type | Rolling Lobe |
| Application | SAF Holland/Neway, Watson and Chalin |
| Compressed Length | 7.3 in |
| Extended Length | 24.6 in |
| Material | Plastic |
| UPC | 889626211010 |
| Weight | 14.47 lb |
| Capacity | 7200 lb at 100 psi, 5700 lb at 80 psi |
| Fitting Size | 12.6 in |
| Manufacturer Part Number | AB1DK23L-9243 |
| Product Category | Air Spring |
Interchanges & Equivalent parts:
| AB1DK23L-9243 |
