Air Spring, Rolling Lobe Air Spring, Plastic Base, 7200 lb at 100 psi, 5700 lb at 80 psi, 7.3 in Compressed Length, 24.6 in Extended Length, 12.6 in
#MZHAB1DK23L-P762
Product Overview
Air Spring, Rolling Lobe Air Spring, Plastic Base, 7200 lb at 100 psi, 5700 lb at 80 psi, 7.3 in Compressed Length, 24.6 in Extended Length, 12.6 in, For Watson and Chalin
Features & Benefits
- Bumper

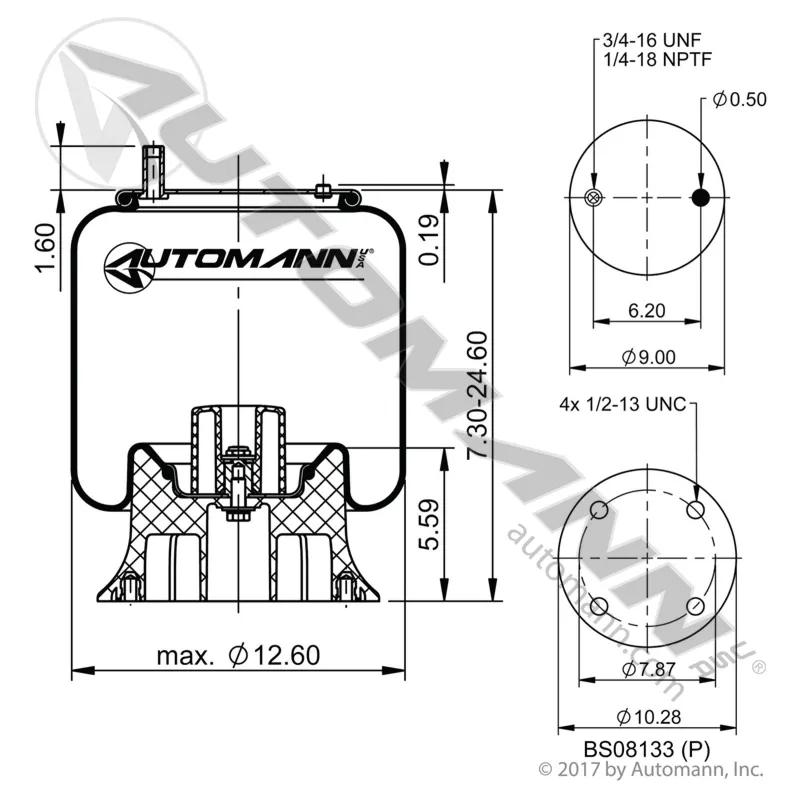

- Bottom plate C to C diameter (D): 7.87 in
- Bottom plate diameter (C): 10.28
- Bottom plate hole/stud qty: 4
- Top plate C to C diameter (B): 6.2
- Top plate diameter (A): 9
- Top plate hole/stud qty: 2
- Plastic bottom plate type
- 15.5 in design height
- 60 cpm natural frequency, bellows#: 9 10-19 Contitech, 1T15M-9 Firestone, 1DK23L Automann
Specifications
| Air Spring Type | Rolling Lobe |
| Application | Watson and Chalin |
| Bottom Plate Hole/Stud Qty | 4 |
| Bumper | Yes |
| Compressed Length | 7.3 in |
| Contitech Bellow # | 9 10-19 |
| Design Height (in.) | 15-1/2 in (39.37 cm) |
| Diameter | 9 in (22.86 cm) |
| Extended Length | 24.6 in |
| Material | Plastic |
| UPC | 889626211126 |
| Weight | 15.26 lb |
| Capacity | 7200 lb at 100 psi, 5700 lb at 80 psi |
| Fitting Size | 12.6 in |
| Manufacturer Part Number | AB1DK23L-P762 |
| Product Category | Air Spring |
Interchanges & Equivalent parts:
| AB1DK23L-P762 |
