Air Spring, Rolling Lobe Air Spring, Plastic Base, 7200 lb at 100 psi, 5760 lb at 80 psi, 7.3 in Compressed Length, 21.4 in Extended Length, 12.6 in
#MZHAB1DK23J-9644
Product Overview
Air Spring, Rolling Lobe Air Spring, Plastic Base, 7200 lb at 100 psi, 5760 lb at 80 psi, 7.3 in Compressed Length, 21.4 in Extended Length, 12.6 in, For Hendrickson Trailer
Features & Benefits
- Bumper

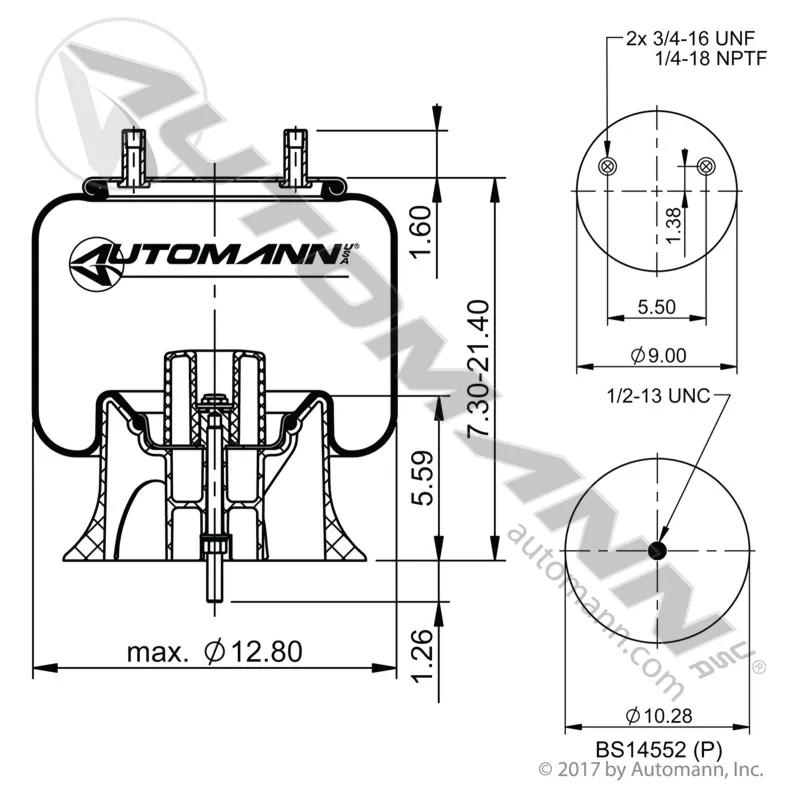

- Bottom plate diameter (C): 10.28
- Bottom plate hole/stud qty: 1
- Top plate C to C diameter (B): 5.5
- Top plate diameter (A): 9
- Top plate hole/stud qty: 2
- Plastic bottom plate type
- 13 in design height
- 71 cpm natural frequency
- Bellows#: 6428 Triangle, 9 10BP-16 Contitech, 1T15MBTW-6 Firestone, 1DK23J Automann
Specifications
| Air Spring Type | Rolling Lobe |
| Application | Hendrickson Trailer |
| Compressed Length | 7.3 in |
| Extended Length | 21.4 in |
| Material | Plastic |
| UPC | 889626210549 |
| Weight | 13.94 lb |
| Capacity | 7200 lb at 100 psi, 5760 lb at 80 psi |
| Fitting Size | 12.6 in |
| Manufacturer Part Number | AB1DK23J-9644 |
| Product Category | Air Spring |
Interchanges & Equivalent parts:
| AB1DK23J-9644 |
