Air Spring, Rolling Lobe Air Spring, Steel Base, 5.4 in Compressed Length, 15.2 in Extended Length, For Reyco Granning, Ridewell
#MZHAB1DK10-5323
Product Overview
Air Spring, Rolling Lobe Air Spring, Steel Base, 5.4 in Compressed Length, 15.2 in Extended Length, For Reyco Granning, Ridewell
Features & Benefits
- Bumper

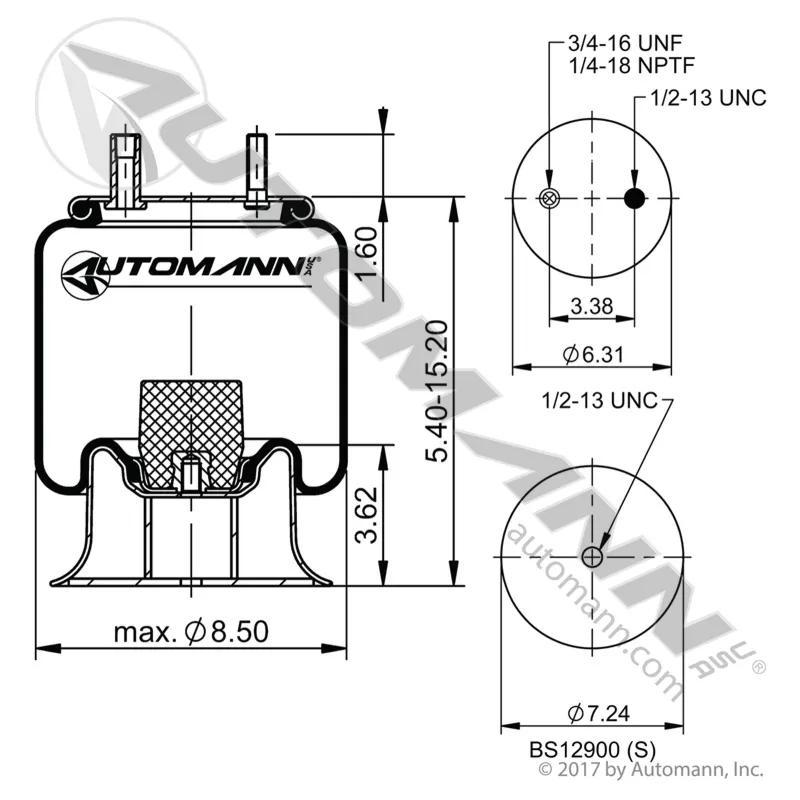

- Bottom plate diameter (C): 7.24
- Bottom plate hole/stud qty: 1
- Top plate C to C diameter (B): 3.38
- Top plate diameter (A): 6.31
- Top plate hole/stud qty: 2
- Steel bottom plate type
- 8.5 in design height
- 90 cfm natural frequency
- Bellows#: 6 6.5-11 Contitech, 1DK10 Automann
Specifications
| Air Spring Type | Rolling Lobe |
| Application | Reyco Granning, Ridewell |
| Bottom Plate Hole/Stud Qty | 1 |
| Bumper | Yes |
| Compressed Length | 5.4 in |
| Contitech Bellow # | 6 6.5-11 |
| Design Height (in.) | 8-1/2 in (21.59 cm) |
| Diameter | 6-5/16 in (16.03 cm) |
| Extended Length | 15.2 in |
| Material | Steel |
| UPC | 889626209079 |
| Weight | 9.47 lb |
| Manufacturer Part Number | AB1DK10-5323 |
| Product Category | Air Spring |
Interchanges & Equivalent parts:
| AB1DK10-5323 |
