Air Spring, Triple Convoluted Air Spring, 11100 lb at 100 psi, 8900 lb at 80 psi, 4.6 in Compressed Length, 21.3 in Extended Length, 15.9 in
#MZHABSP3B32RA-C808
Product Overview
Air Spring, Triple Convoluted Air Spring, 11100 lb at 100 psi, 8900 lb at 80 psi, 4.6 in Compressed Length, 21.3 in Extended Length, 15.9 in, For Watson and Chalin
Features & Benefits

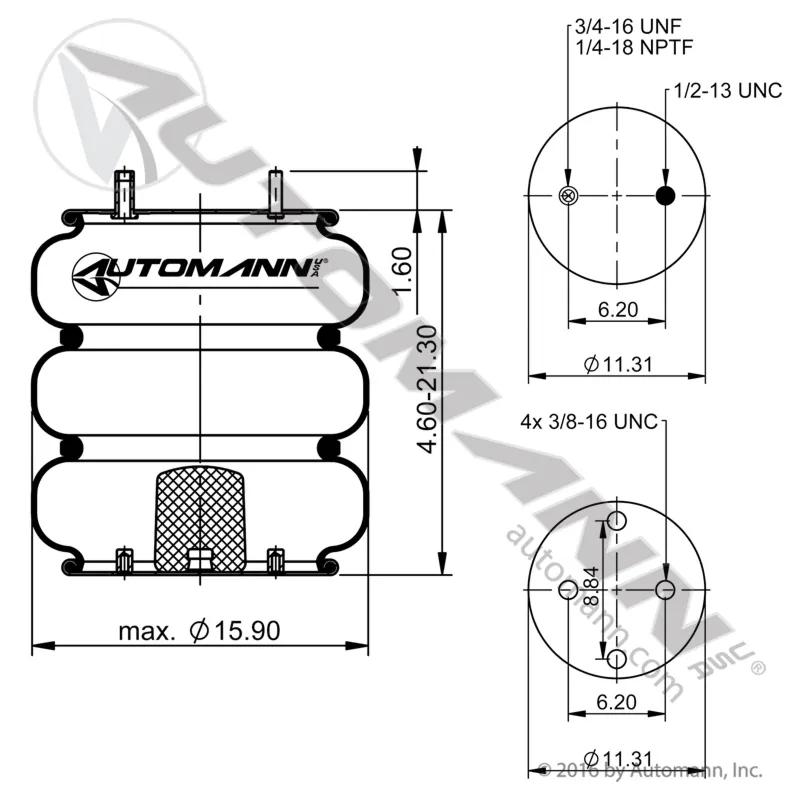

- Bumper: yes, bellows#: FT 530-35 Contitech, SP3B32RA Automann
- Bottom plate C to C diameter (D): 6.2 in
- Bottom plate diameter (C): 11.31
- Bottom plate hole/stud qty: 4
- Top plate C to C diameter (B): 6.2
- Top plate diameter (A): 11.31
- Top plate hole/stud qty: 2
- 13 in design height
- 62 cpm natural frequency
Specifications
| Air Spring Type | Triple Convoluted |
| Application | Watson and Chalin |
| Compressed Length | 4.6 in |
| Extended Length | 21.3 in |
| UPC | 889626213113 |
| Weight | 21.18 lb |
| Capacity | 11100 lb at 100 psi, 8900 lb at 80 psi |
| Fitting Size | 15.9 in |
| Manufacturer Part Number | ABSP3B32RA-C808 |
| Product Category | Air Spring |
Interchanges & Equivalent parts:
| ABSP3B32RA-C808 |
