AIR SPRING W/ ALU PISTON

#SAP559804-KA

See More
See Less

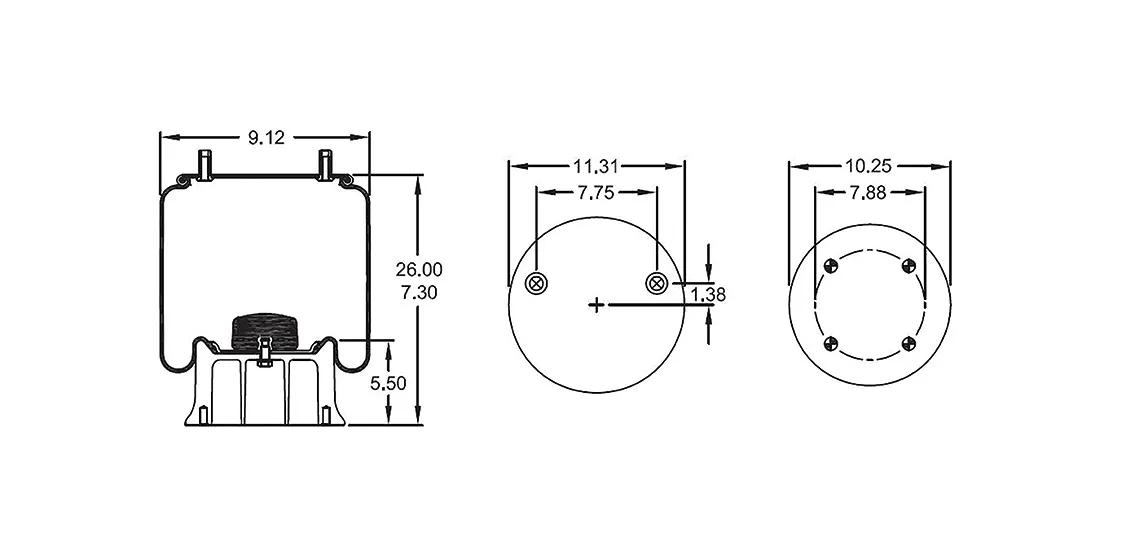

Specifications


Bottom Stud Configuration 1/2-13 in UNC
Bottom Plate Hole/Stud Qty 4
Compressed Length 7-19/64 in
Extended Length 26 in
Piston Height 5-33/64 in
Top Plate Diameter 11-15/64 in
Top Plate Hole/Stud Qty 2
Top Stud Configuration 2-1/4 in - 18 NPTF

Interchanges & Equivalent parts:


559804-KA
SP 559804-KA
See more
Similar products
Goodyear - ARB1R14-151 - 1R14-151
Goodyear Rolling Lobe Air Spring with Composite Piston, 7.2 in Compressed Length, 24.2 in Extended Length
#ARB1R14-151
Firestone - FIRW01-358-9804 - W01-358-9804
Firestone Air Spring 1T Reversible Sleeve, 7.3 in Compressed Length, 26 in Extended Length
#FIRW01-358-9804
