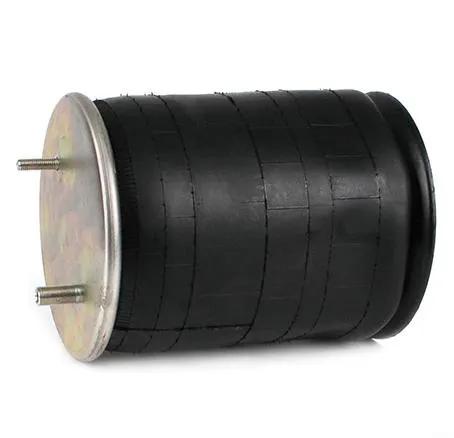

AIR SPRING W/ PLASTIC PISTON
#SAP558749-KP
Specifications
Bead Plate (Top) Mounting Bolts Dimension Center to Center | 5-1/2 in (13.97 cm) |
Bottom Plate Hole Stud Qty | 1 |
Bottom Stud Configuration | 1/2 in-13 UNC |
Compressed Length | 9-7/8 in (25.1 cm) |
Maximum Height | 27-19/32 in (70.08 cm) |
Mounting Studs | 1/4 in - 18 NPTF & 1/2 in - 13 UNC |
Piston Height | 7-9/16 in (19.2 cm) |
Top Plate Diameter | 10-1/8 in (25.73 cm) |
Top Plate Hole Count | 2 |
