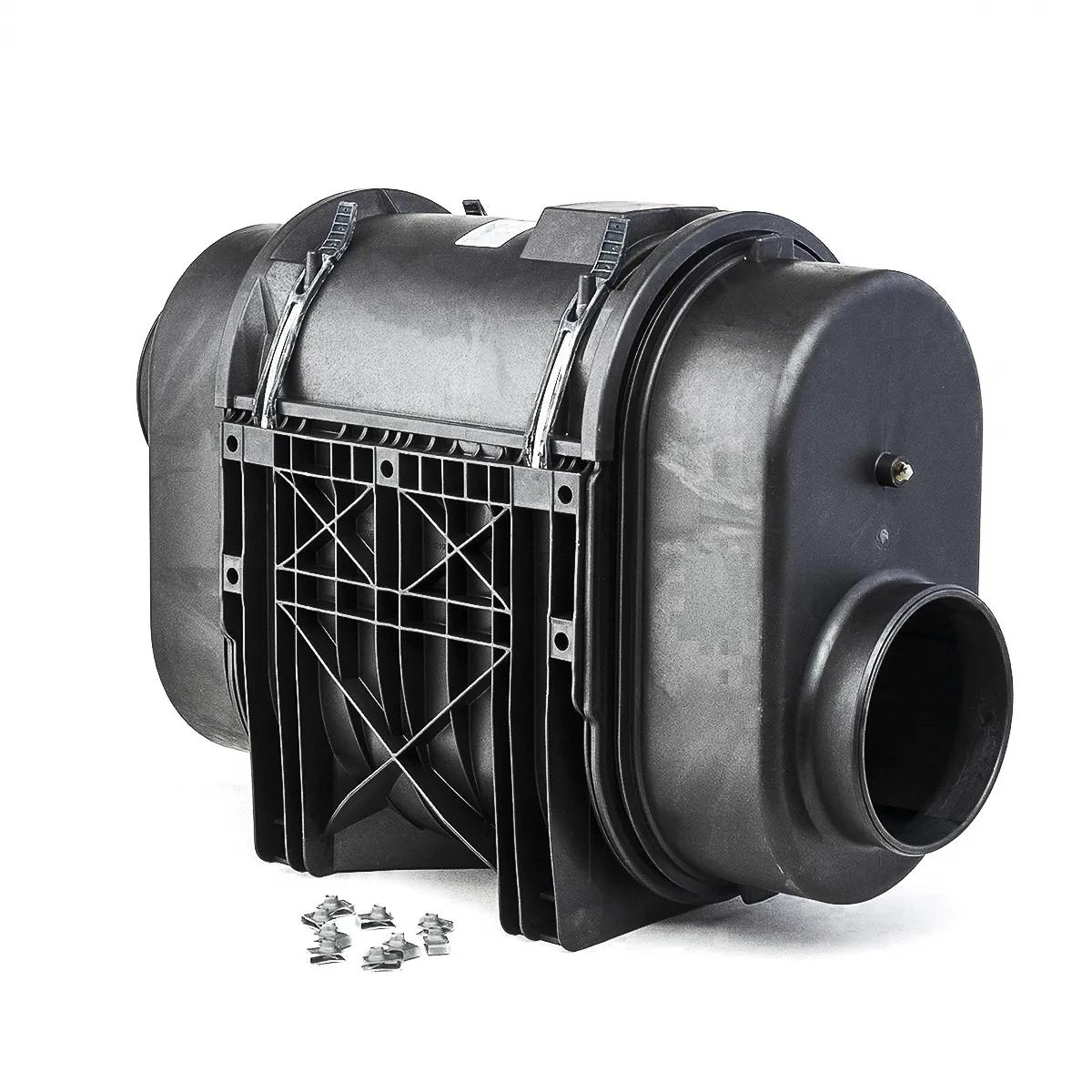

Air Strainers;Air Filtration System, OD: 7 in, W: 12,52 in
#DOND140132
Features & Benefits
- Genuine PowerCore cleaners provide superior protection and performance
- Lower initial restriction protects engine performance and fuel economy
- PowerCore technology has been meeting original equipment manufacturer specifications for 20+ years
Specifications
| Depth | 19.72 in |
| Diameter Range | 7 to 7.99 in |
| Family | PCD |
| Inlet Diameter | 2.01 in (51.06 mm) |
| Outer Diameter | 7 in (177.8 mm) |
| Outlet Diameter | 2.43 in (61.73 mm) |
| Overall Length | 28.46 in (722.9 mm) |
| Rated Flow High Range | 1501 cfm |
| Rated Flow Low Range | 1140 cfm |
| Rated Flow Mid Range | 1321 cfm |
| Restriction HR | 10 in H2O |
| Restriction LR | 6.01 in H20 |
| Restriction MR | 8.01 in H2O |
| Style | Obround |
| Type | Engine |
| Width | 12.52 in |
Interchanges & Equivalent parts:
| D140132 |
