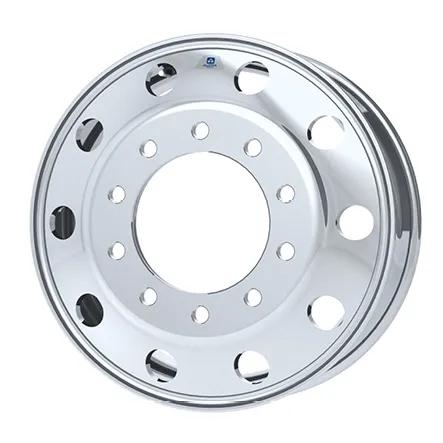

Alcoa 22.5 x 8.25 in Aluminum Wheel, 10 Bolt Holes, 7400 lb Load Capacity
#ALCULA182DB
Product Overview
The latest in advanced innovation, manufacturing, and engineering on the road. Featuring Alcoa’s proprietary MagnaForce® alloy, VHub™ bore technology, and a proprietary flange mounting design to accommodate the aerodynamic drive cover, this lightweight wheel is ideal for heavy-duty truck, trailer, and motorhome applications.Wheel, Hub Piloted, 285.75 mm Bolt Circle Dia, 220.1 mm Center Bore, 26 mm Hole, 130 psi Max Inflation, 7400 lb Maximum Load, 10 Bolt Holes, Recommended Tire Valve Number: TR554D, 22-1/2 x 8-1/4 in Wheel
Features & Benefits
- Dura-Bright® surface treatment
Specifications
| Bolt Circle Diameter | 285.75 mm |
| Finish | Dura-Bright® |
| Hole Size | 26 mm |
| Material | Aluminum |
| Number of Bolt Holes | 10 |
| Weight | 39 lb |
| Wheel Size | 22.5 x 8.25 in |
| Center Bore | 220.1 mm |
| Maximum Load Capacity | 7400 lb |
| Max Inflation | 130 psi |
| Mounting Type | Hub Piloted |
| Recommended Tire Valve Number | TR554D |
| Product Category | Wheel |
