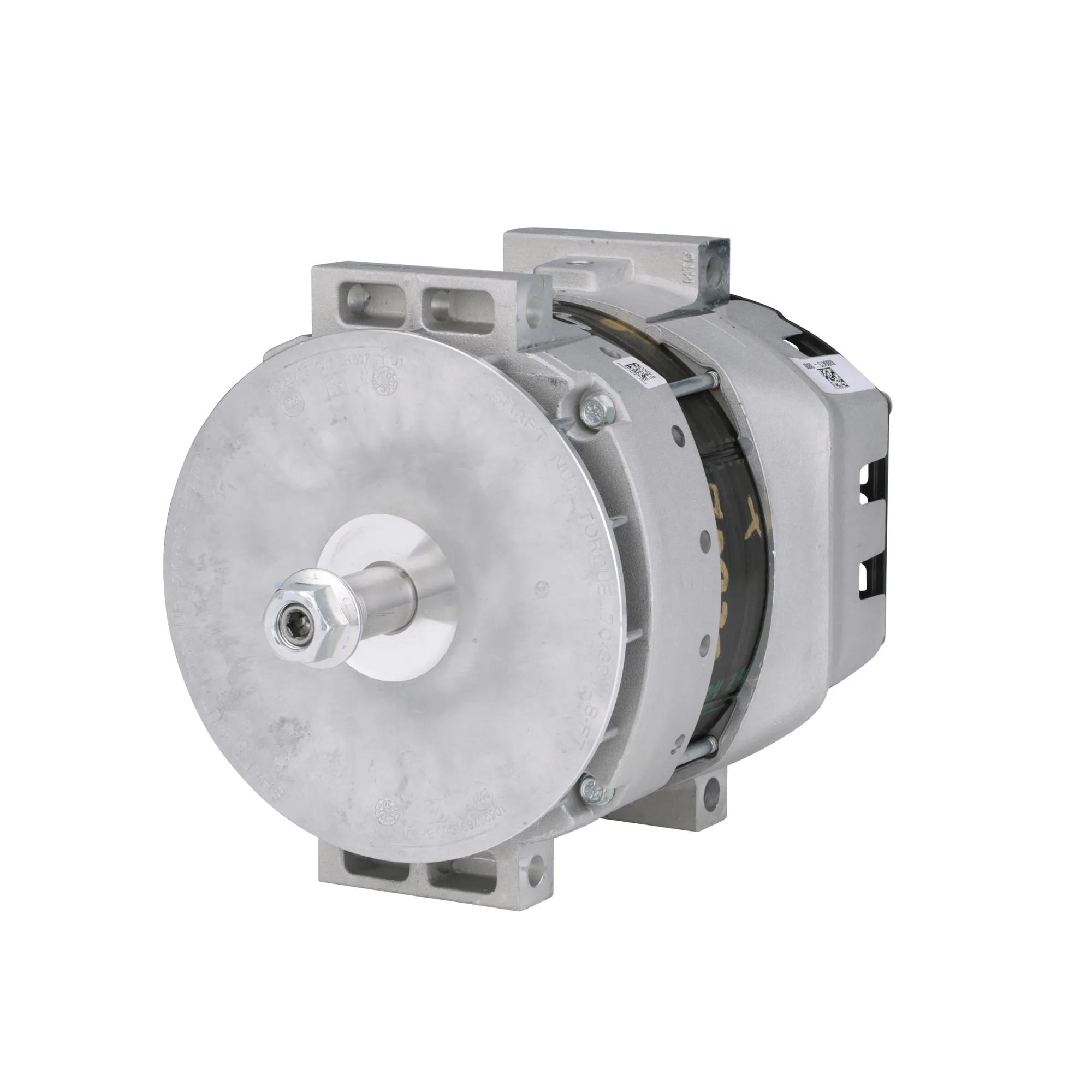

Alternator, Heavy Duty, Brushless, 1/2 in B+ Output Terminal, 430 A, 8000 rpm Continuous, 9000 rpm Intermittent Maximum Speed
#DEC8600473
Product Overview
From 12 V applications such as vocational, fire and long haul trucks with auxiliary power units to 24 V applications like off-highway equipment and transit and coach buses, the 55SI is designed to take on the demanding electrical loads of today’s heavy duty vehicles.Alternator, Heavy Duty, Brushless, 1/2 in B+ Output Terminal, 430 A, 8000 rpm Continuous, 9000 rpm Intermittent Maximum Speed, Model: 55SI, 80 mm Standard Pad Mounting, CW Rotation, 6.9 in Stator Diameter, 12 V System Voltage, 93 °C, Terminals: #10 R Terminal, #10 I Terminal, 11.25 in Length
Features & Benefits
- Powerful
- Durable
- Equipped with remote sense
- Efficient
- Compact
- 3 Years warranty
Specifications
| B+ Output Terminal | 1/2 in |
| Model | 55SI |
| Type | Heavy Duty, Brushless |
| Current Rating | 430 A |
| Length | 11.25 in |
| Maximum Speed | 8000 rpm Continuous, 9000 rpm Intermittent |
| Mounting Configuration | 80 mm Standard Pad |
| Rotation Direction | CW |
| Stator Diameter | 6.9 in |
| System Voltage | 12 V |
| Temperature Rating | 93 °C |
| # Terminals | #10 R Terminal, #10 I Terminal |
| Manufacturer Part Number | 8600473 |
| Product Category | Alternator |
