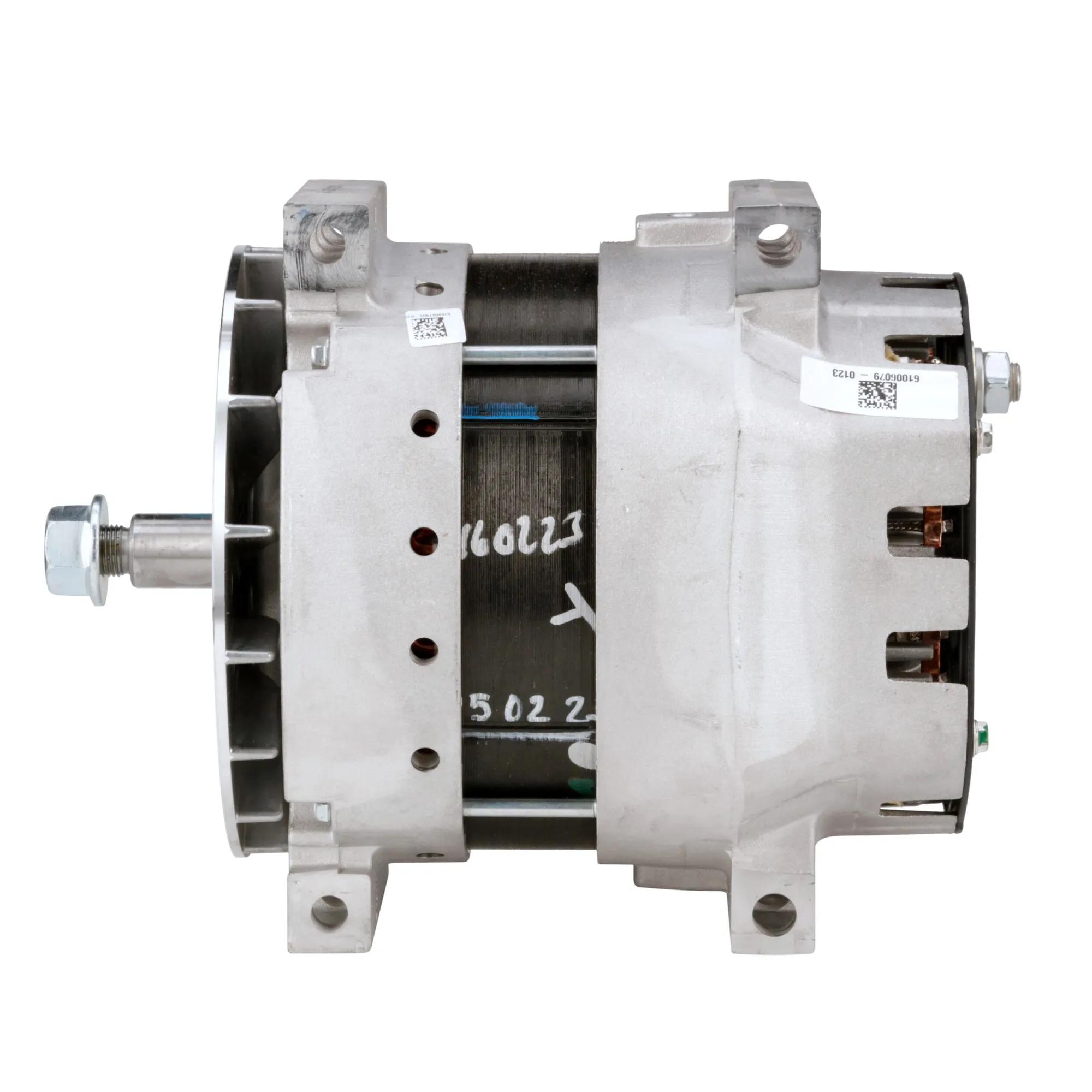

Alternator, Heavy Duty, Brushless, B+ Output Terminal: 1/2, 430 A, 55SI, Long Pad (105 mm) Mounting
#DEC61006079
Product Overview
From 12 V applications such as vocational, fire and long haul trucks with auxiliary power units to 24 V applications like off-highway equipment and transit and coach buses, the 55SI is designed to take on the demanding electrical loads of today’s heavy duty vehicles.Alternator, Heavy Duty, Brushless, B+ Output Terminal: 1/2, 430 A, 55SI, Long Pad (105 mm) Mounting, Clockwise Rotation, 6.9 in Stator Diameter, 12 V System Voltage, 93 °C, Terminals: #10 R and I Terminal, 7.34 in Height, 11.25 in Length
Features & Benefits
- Powerful
- Durable
- Equipped with remote sense
- Efficient
- Compact
- 3 yr warranty
Specifications
| B+ Output Terminal | 1/2 |
| Model | 55SI |
| Type | Heavy Duty, Brushless |
| Current Rating | 430 A |
| Height | 7.34 in |
| Length | 11.25 in |
| Mounting Configuration | Long Pad (105 mm) |
| Rotation Direction | Clockwise |
| Stator Diameter | 6.9 in |
| System Voltage | 12 V |
| Temperature Rating | 93 °C |
| # Terminals | #10 R and I Terminal |
| Manufacturer Part Number | 61006079 |
| Product Category | Alternator |
