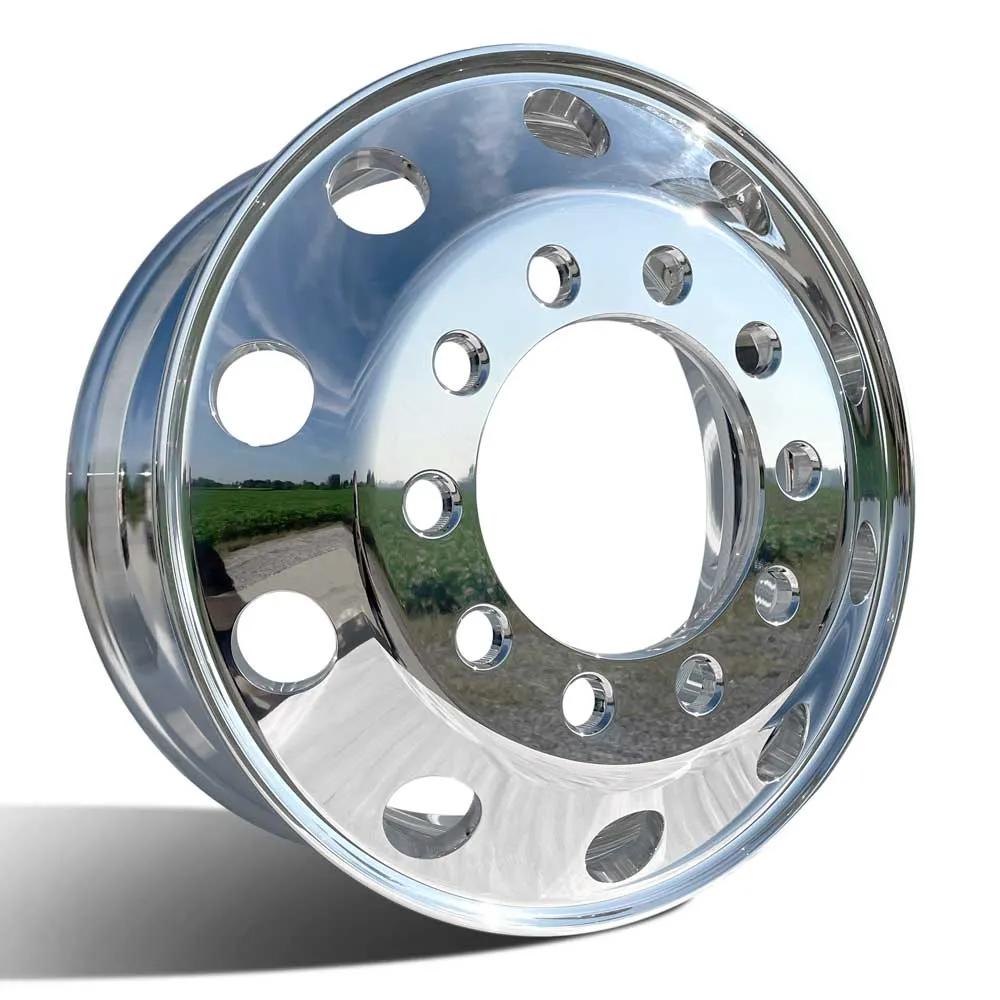

Aluminum Wheel 22.5 in. x 8.25 in. Clean Buff Both Sides
#ALC883117
Features & Benefits
- Valve Stem TR555D
- Stabilizer 2225
- Hub Bore Diameter 8.722
- Bolt Hole Diameter 1.18
- Ball Seat
Specifications
| Bolt Circle | 11-1/4 in (28.58 cm) |
| Center Bore (in) | 8-23/32 in (22.15 cm) |
| Finish | Clean Buff |
| Inset (in) | 5-11/16 in (14.45 cm) |
| Material | Aluminum |
| Max Inflation (psi) | 130 psi (8.96 bar) |
| Mounting | Stud-Piloted Dual-Mounting Double Cap Nut |
| Number of Bolt Holes | 10 |
| Offset | 6-19/32 in (16.75 cm) |
| Pilot | 8-23/32 in (22.15 cm) |
| Rim Diameter (in) | 22-1/2 in (57.15 cm) |
| Rim Width (in) | 8-1/4 in (20.96 cm) |
| Type | 15° Tubeless Aluminum Wheel |
| Weight | 52 lbs (23.59 kg) |
| Wheel Size | 22-1/2 in x 8-1/4 in (57.15 cm x 20.96 cm) |
Interchanges & Equivalent parts:
| 28615ANP |
| 883110 |
