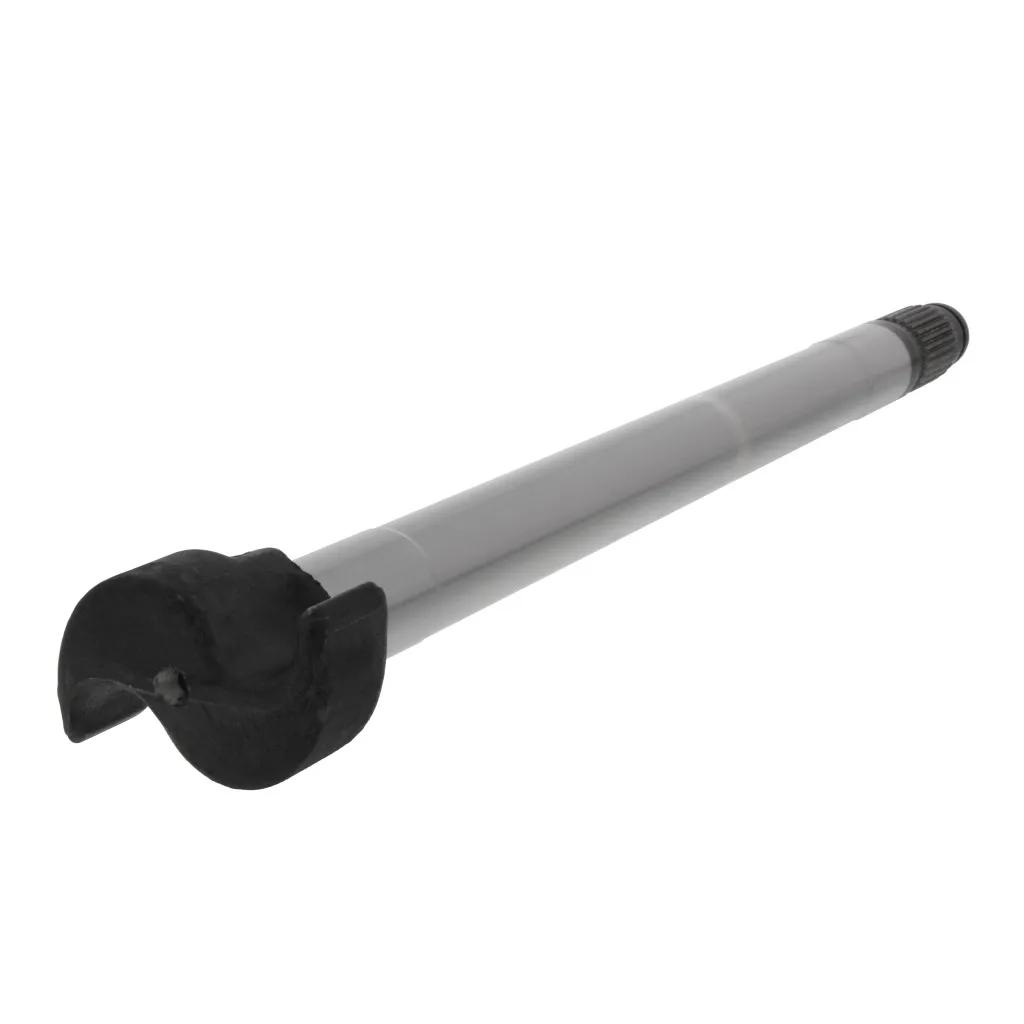

Brake Camshaft, Splines: 1-1/2 in - 28, L: 18-19/32 in
#ROC2210M7787
Specifications
| Brake Camshaft Head Size | 1-3/16 in (3.02 cm) |
| Brake Camshaft Dimension B | 1-13/16 in (4.61 cm) |
| Brake Surface Diameter | 16-1/2 in (41.91 cm) |
| Brake Type | Meritor Q Plus |
| Bushing Journal Length (in.) | 1-49/64 in (4.49 cm) |
| Camshaft Length | 18-19/32 in (47.23 cm) |
| OE Mfg. | Meritor |
| Right or Left Side | Right |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 28 |
| Splines | 28 |
| Length Range | 18 to 18.99 in |
| UPC | 737238661757 |
| VMRS Code | 013-017-004 |
| Weight | 11.34 lb (5.14 kg) |
Interchanges & Equivalent parts:
| 2210-G-5467 |
| 2210-G-5467S |
| 8235-2210M7787 |
| ATI2210M7787 |
| CS11604R |
| E-11604 |
| HQ-10697R |
| TDA 2210M7787 |
| TDA2210M7787 |
