ASA, Spline: 1-1/2 in - 10, L: 5 1/2 in, 6 1/2 in

#MSAD0010143

voir plus
voir moins

Spécifications


Angle 34 deg
Application Standard

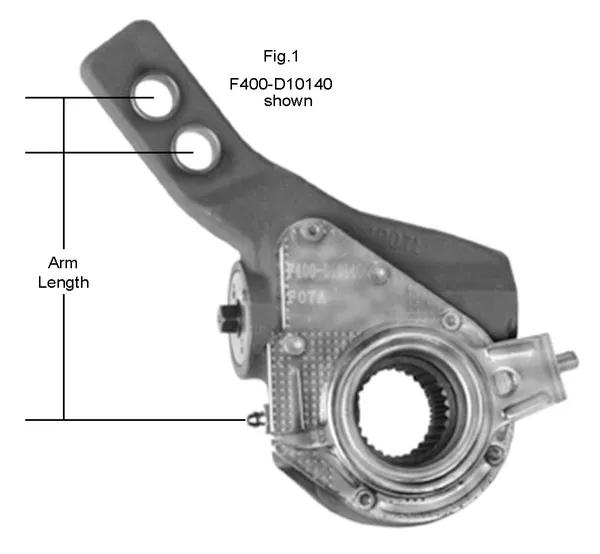

Arm Length # 1 5-1/2 in & 6-1/2 in
Automatic or Manual Automatic
Brake Size 16-1/2 in (41.91 cm)
Bushing I.D. 5/8 in (1.59 cm)
Clevis Type Unclevised
Number of Splines 10
Spline Diameter 1-1/2 in (3.81 cm)
Spline Diameter-Spline Count 1-1/2 in - 10

Interchanges et pièces équivalentes:


40010143
D0010143
E6924A
R806022
815809
SA1202HC
F400-D10143
See more
