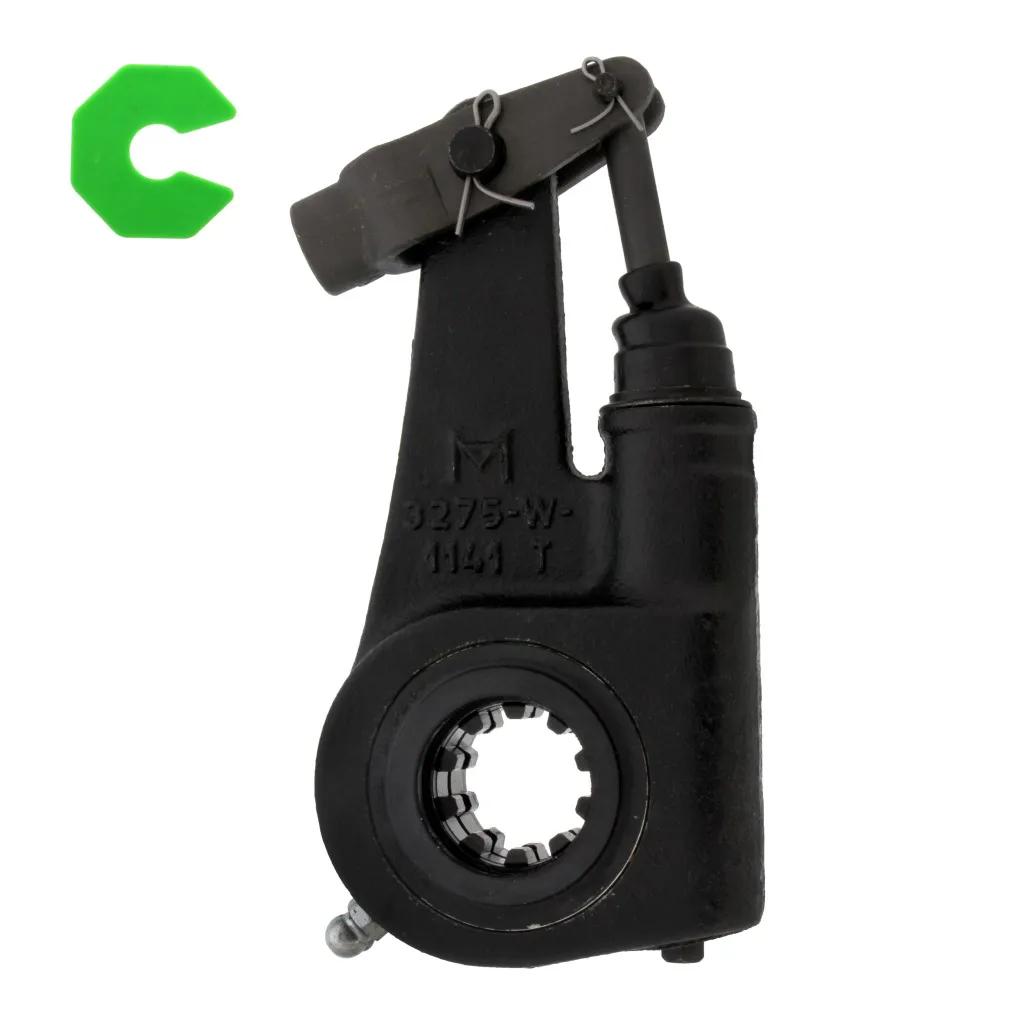

ASA, Spline: 1-1/2 in - 10, L: 6 in
#ROCR802355
Specifications
| Arm Length # 1 | 6 in |
| Automatic or Manual | Automatic |
| Chamber Sizes | 30 in (76.2 cm) |
| Clevis Thread Diameter (in.) | 5/8 in (1.59 cm) |
| Clevis Threads per inch | 18 in (45.72 cm) |
| Clevis Type | Straight |
| Maximum Torque | More than 45 inch pounds |
| Model | Meritor |
| Notes | Yellow piston. Drum brake. |
| Number of Splines | 10 |
| Production Part Number | A4-3275-C-1147 |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 10 |
| Type | Stroke-Sensing |
Interchanges & Equivalent parts:
| 3133374 |
| 8235-R802355 |
| 9628 R802355 |
| A3-3275-C-1147S |
| ATIR802355 |
| R802355-RI |
| TDA R802355 |
| TDAR802355 |
| TWDR802355 |
| 05-560 |
| A14-3275B600S |
| AS1033 |
| CS56033M1D |
| E6991A |
| FS-R801042 |
| MERR802355 |
