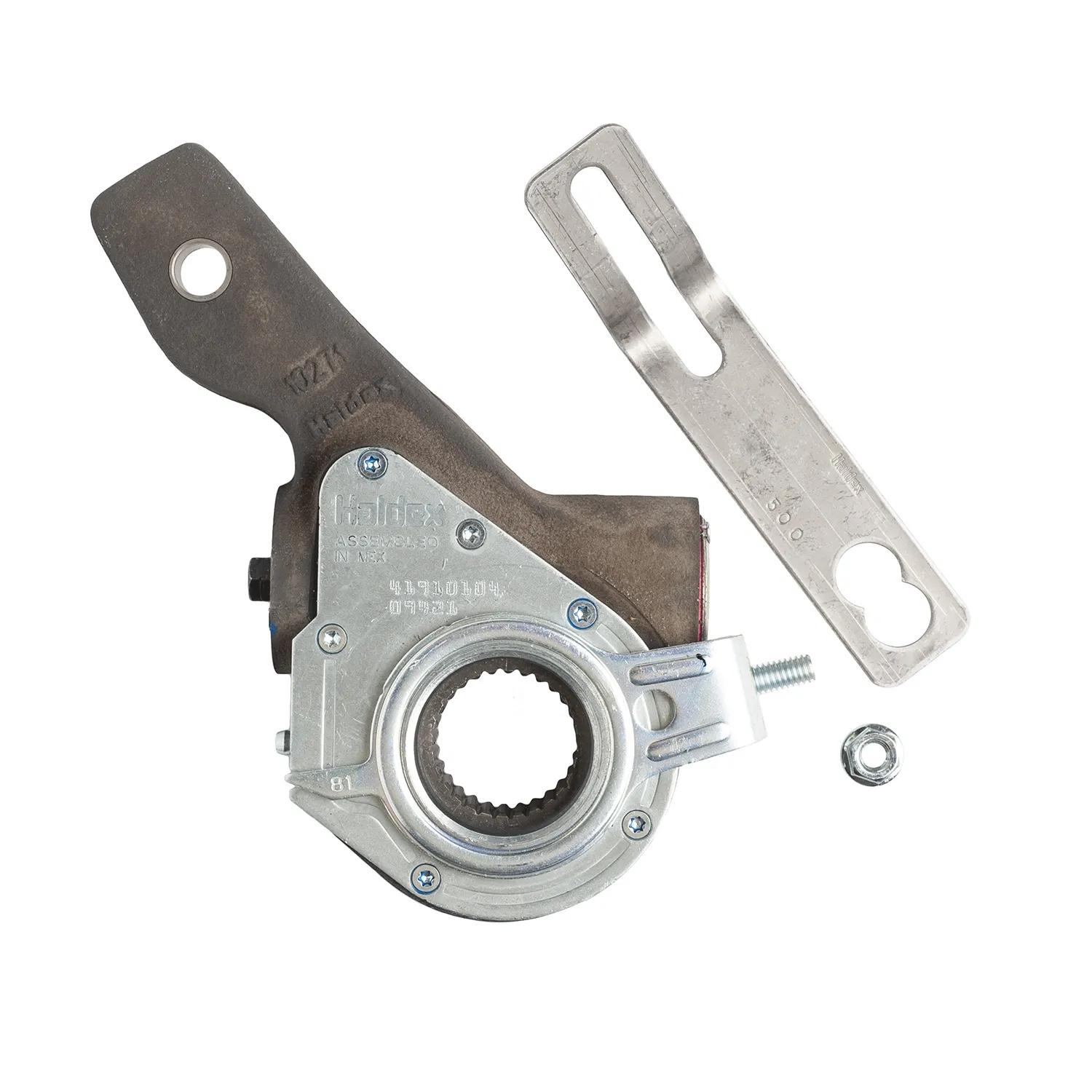

ASA, Spline: 1-1/2 in - 28, L: 5 1/2 in
#MID30010019
Product Overview
Haldex develops and manufactures brake systems for heavy trucks. trailers and buses. The product offering covers all primary components and subsystems included in complete air brake systems.
Features & Benefits
- Haldex Automatic Brake Adjusters cover more applications than any other brand.
- Backed by the industry's longest warranty.
- Compatible with all major brand clevises.
- Enhances braking system efficiency and safety
- Precision engineering ensures reliable performance
- Manufactured to meet or exceed O.E.M. specifications
Specifications
| Arm Length # 1 | 5-1/2 in |
| Automatic or Manual | Automatic |
| Number of Splines | 28 |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 28 |
Interchanges & Equivalent parts:
| 30010019 |
| 419-10104 |
| 419-10204 |
| 5396-30010019 |
| 767653144412 |
| A283275S1059 |
| MID30010019 |
| ZZ30010019 |
| 300-10019 |
| 4W8655 |
| A28-3275-S-1059 |
| U5530010019 |
