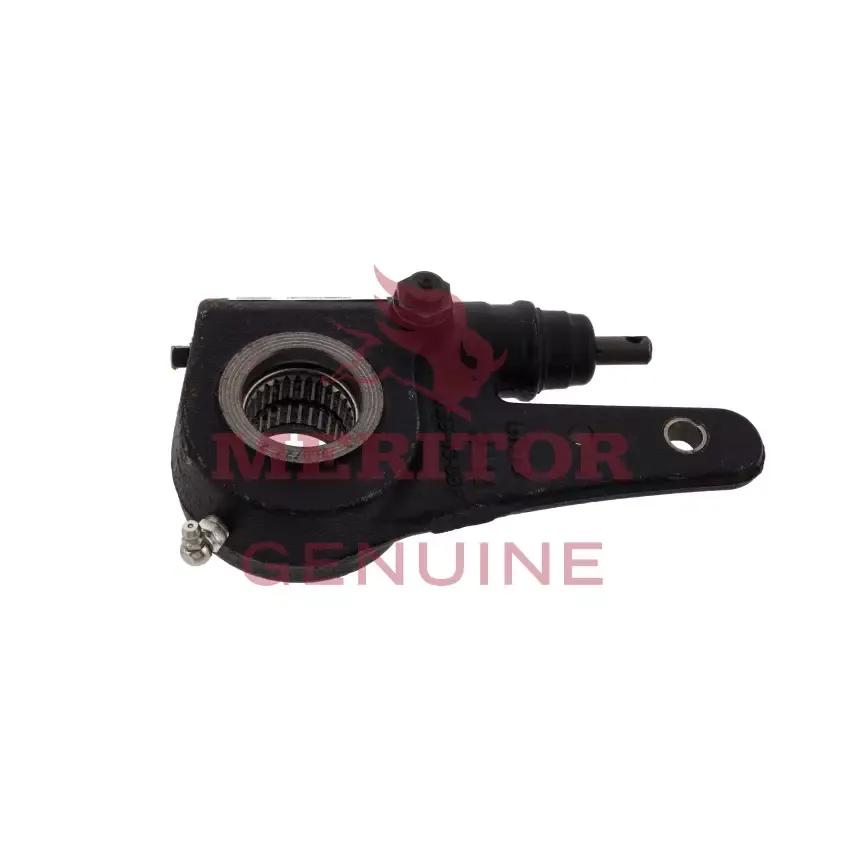

ASA, Spline: 1-1/2 in - 28, L: 5-1/2 in
#ROCA53275U1217
Specifications
| Arm Length # 1 | 5-1/2 in |
| Bushing I.D. | 1/2 in (1.27 cm) |
| Chamber Sizes | 16 in (40.64 cm) |
| Clevis Type | Unclevised |
| Maximum Torque | More than 45 inch pounds |
| Model | Meritor |
| Notes | Red piston. Drum Brake. Machined Corner. Opposite side is A53275T1216. |
| Number of Splines | 28 |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 28 |
| Type | Stroke-Sensing |
Interchanges & Equivalent parts:
| 8235-A53275U1217 |
| ATIA53275U1217 |
| TDA A5 3275U1217 |
| TDAA53275U1217 |
