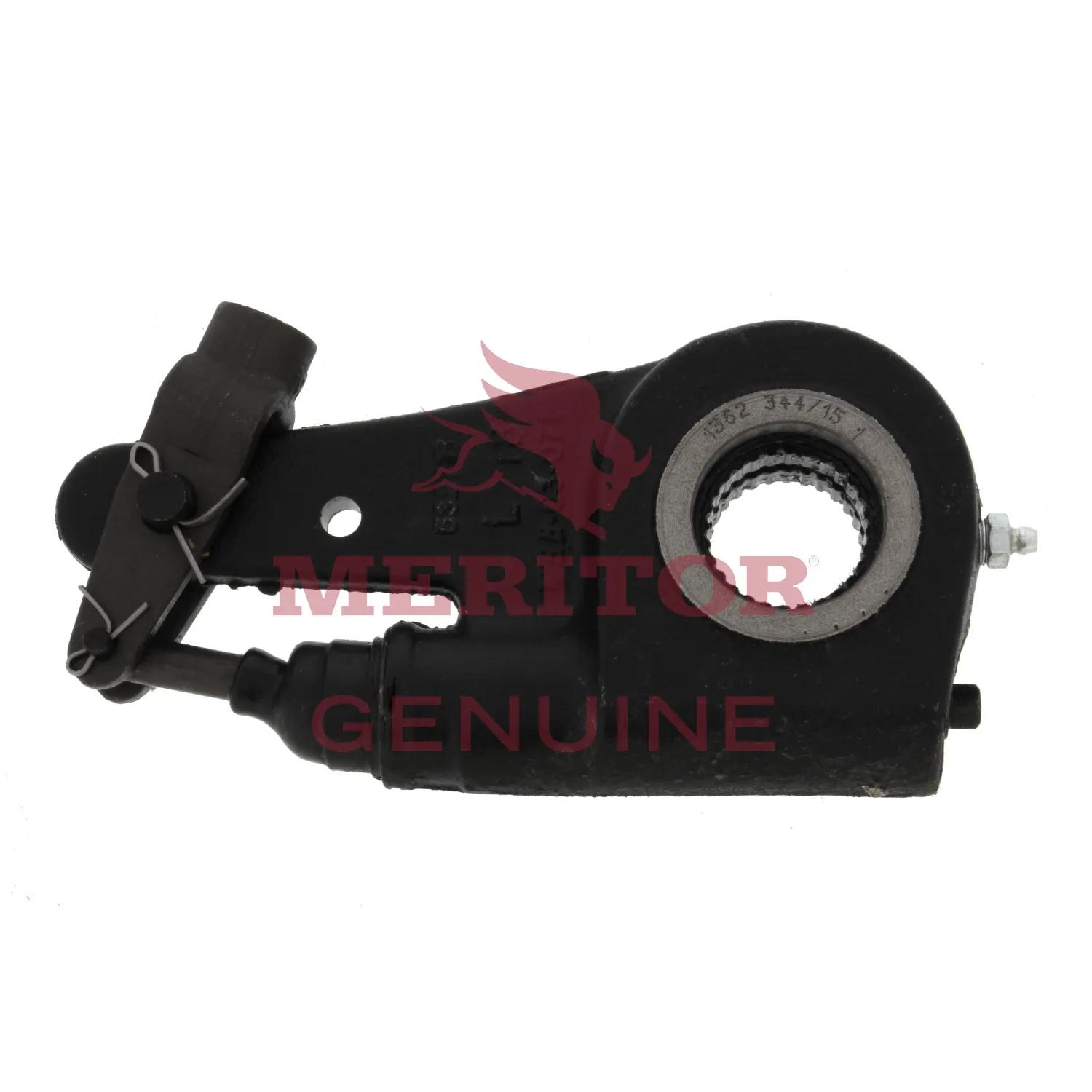

ASA, Spline: 1-1/2 in - 28, L: 5-1/2 in
#ROCR802698
Features & Benefits
- Enhances overall vehicle safety
- Ensures precise brake adjustment
- Increases brake system efficiency
- Features corrosion-resistant coating
- Provides reliable braking performance
- Minimizes brake system maintenance needs
- Meets industry standards and specifications
- Offers durability for extended service life
Specifications
| Arm Length # 1 | 5-1/2 in |
| Automatic or Manual | Automatic |
| Chamber Sizes | 16 in (40.64 cm) |
| Clevis Thread Diameter (in.) | 5/8 in (1.59 cm) |
| Clevis Threads per inch | 18 in (45.72 cm) |
| Clevis Type | Straight |
| Maximum Torque | More than 45 inch pounds |
| Model | Meritor |
| Notes | Red piston. ADB type 16 or Drum brake type 16 or 20. Opposite hand is R802699. |
| Number of Splines | 28 |
| Production Part Number | A63275E1201S |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 28 |
| Type | Stroke-Sensing |
Interchanges & Equivalent parts:
| TDA R802698 |
| 8235-R802698 |
| ATIR802698 |
| R802698-RI |
| TDAR802698 |
