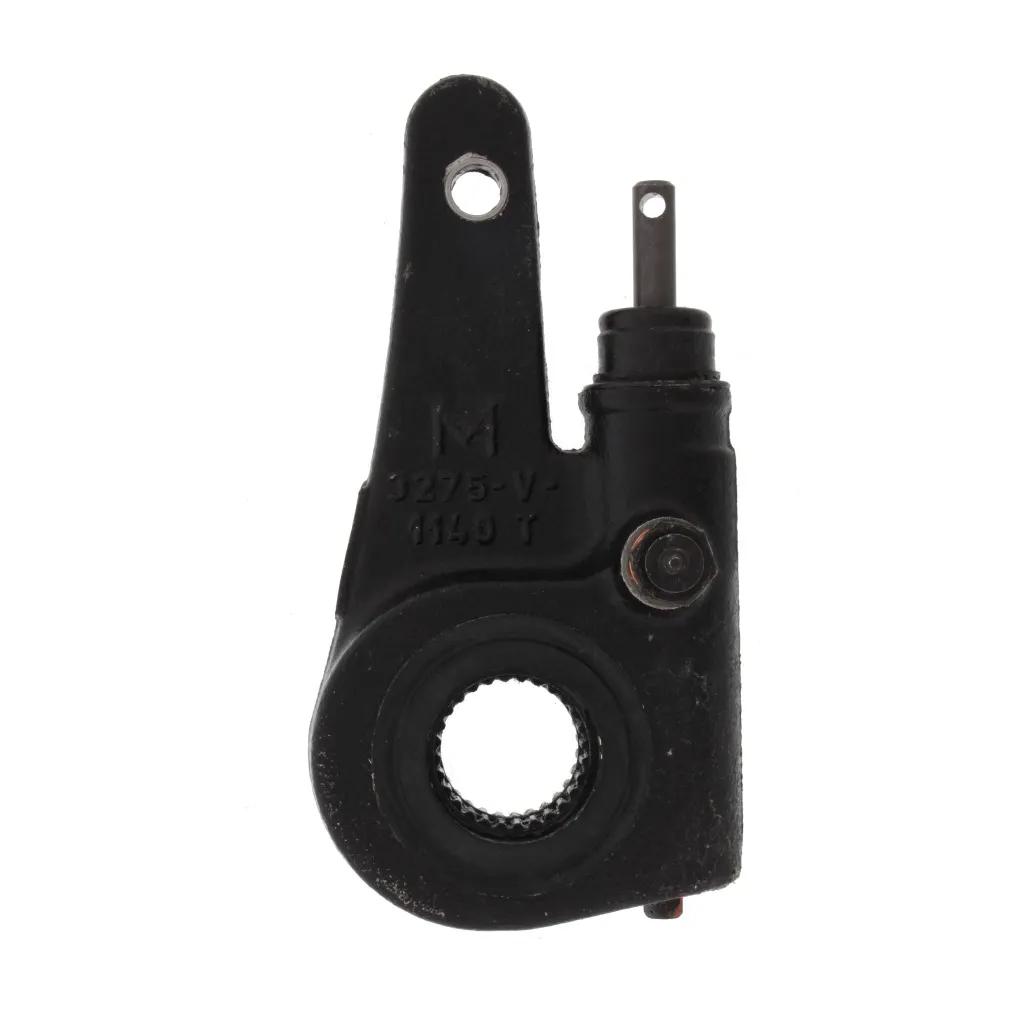

ASA, Spline: 1-1/2 in - 28, L: 5-1/2 in
#ROCR805005
Specifications
| Arm Length # 1 | 5-1/2 in |
| Automatic or Manual | Automatic |
| Bushing I.D. | 1/2 in (1.27 cm) |
| Chamber Sizes | 24 in (60.96 cm) |
| Clevis Type | Unclevised |
| Maximum Torque | More than 45 inch pounds |
| Model | Meritor |
| Notes | Yellow piston. Drum brake. |
| Number of Splines | 28 |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 28 |
| Type | Stroke-Sensing |
Interchanges & Equivalent parts:
| 8235-R805005 |
| 85101753 |
| ATIR805005 |
| R805005-RI |
| TDA R805005 |
| TDAR805005 |
