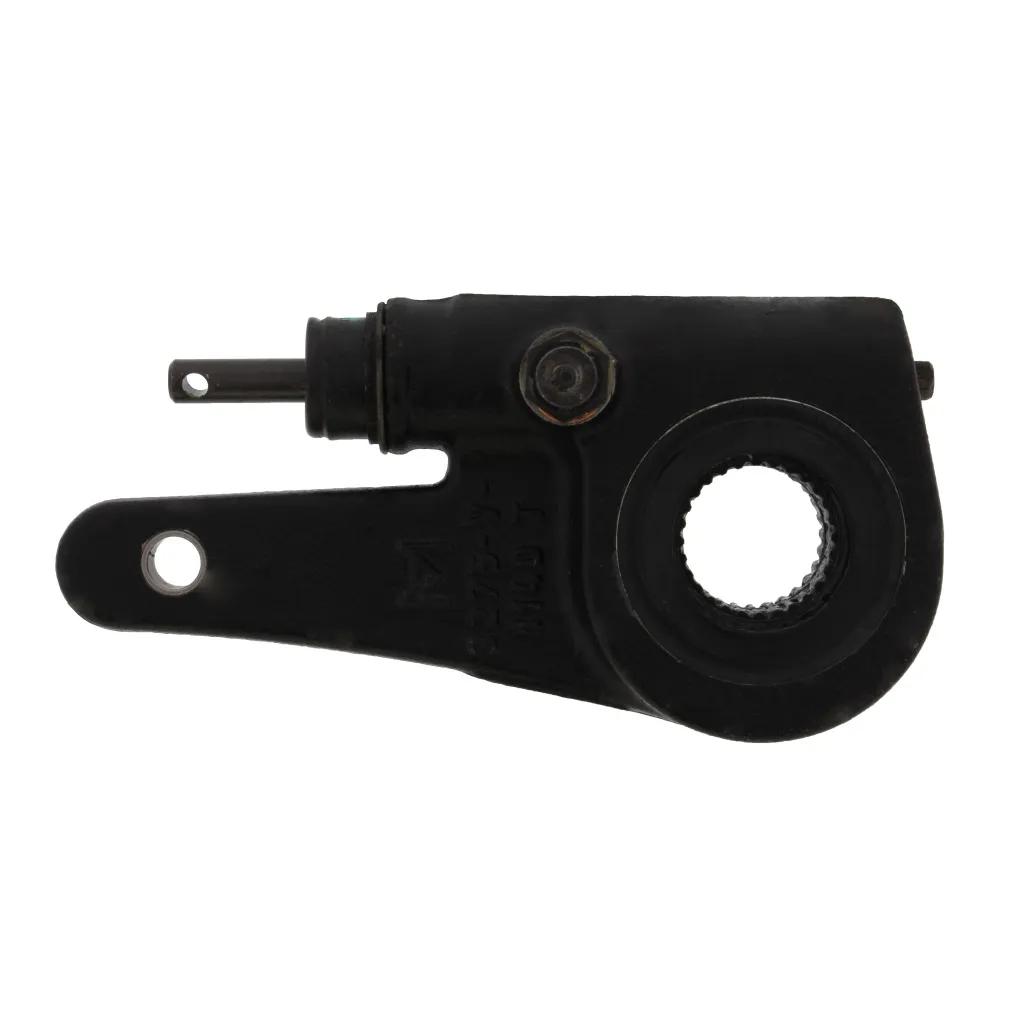

ASA, Spline: 1-1/2 in - 28, L: 5-1/2 in
#ROCR805007
Specifications
| Arm Length # 1 | 5-1/2 in |
| Automatic or Manual | Automatic |
| Bushing I.D. | 1/2 in (1.27 cm) |
| Chamber Sizes | 24 in (60.96 cm) |
| Clevis Thread Diameter (in.) | 5/8 in (1.59 cm) |
| Clevis Threads per inch | 18 in (45.72 cm) |
| Clevis Type | Straight |
| Maximum Torque | More than 45 inch pounds |
| Model | Meritor |
| Notes | Yellow piston. Drum Brake. For LX-MX500 Brakes. |
| Number of Splines | 28 |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 28 |
| Type | Stroke-Sensing |
Interchanges & Equivalent parts:
| 12472324 |
| 8235-R805007 |
| ATIR805007 |
| R805007-RI |
| TDA R805007 |
| TDAR805007 |
