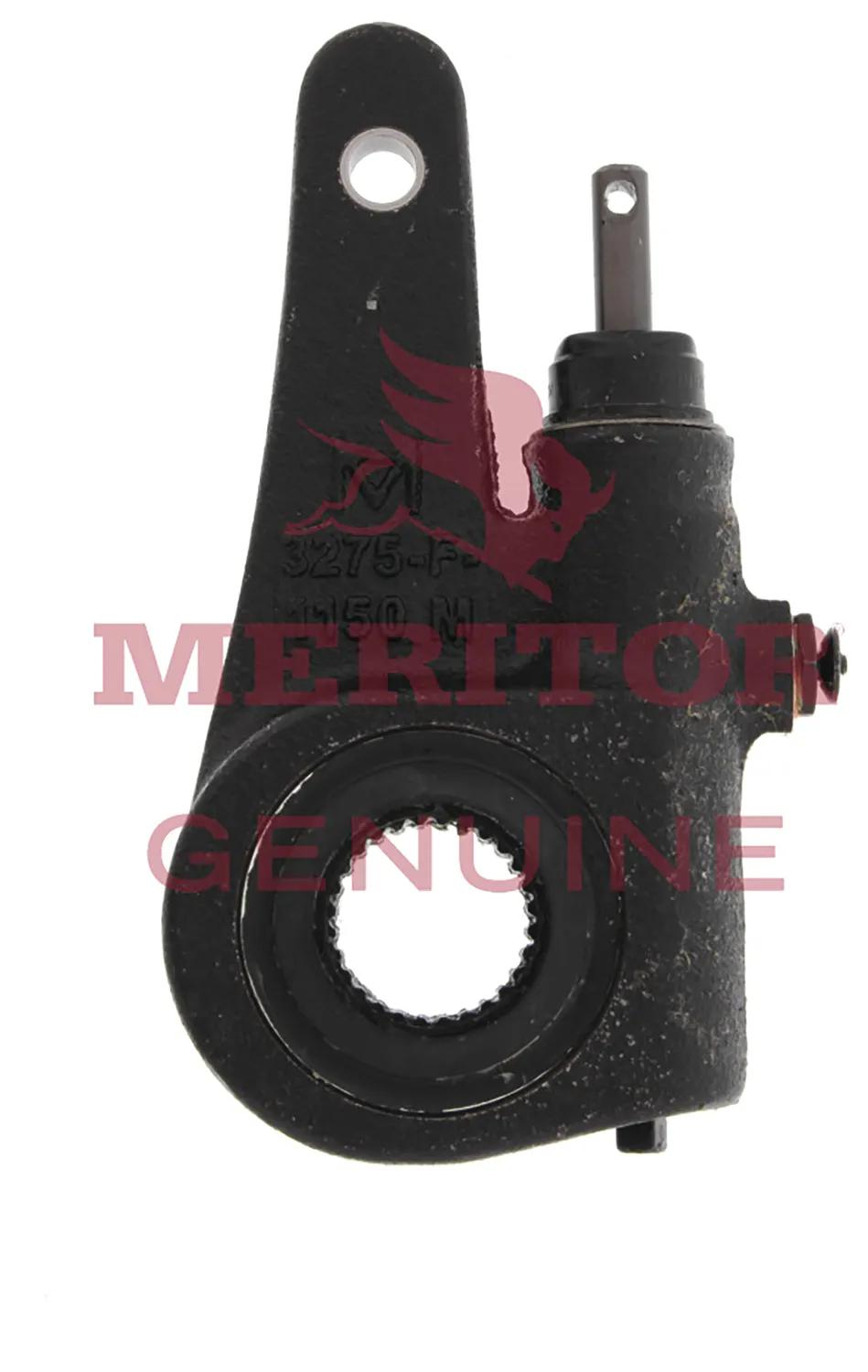

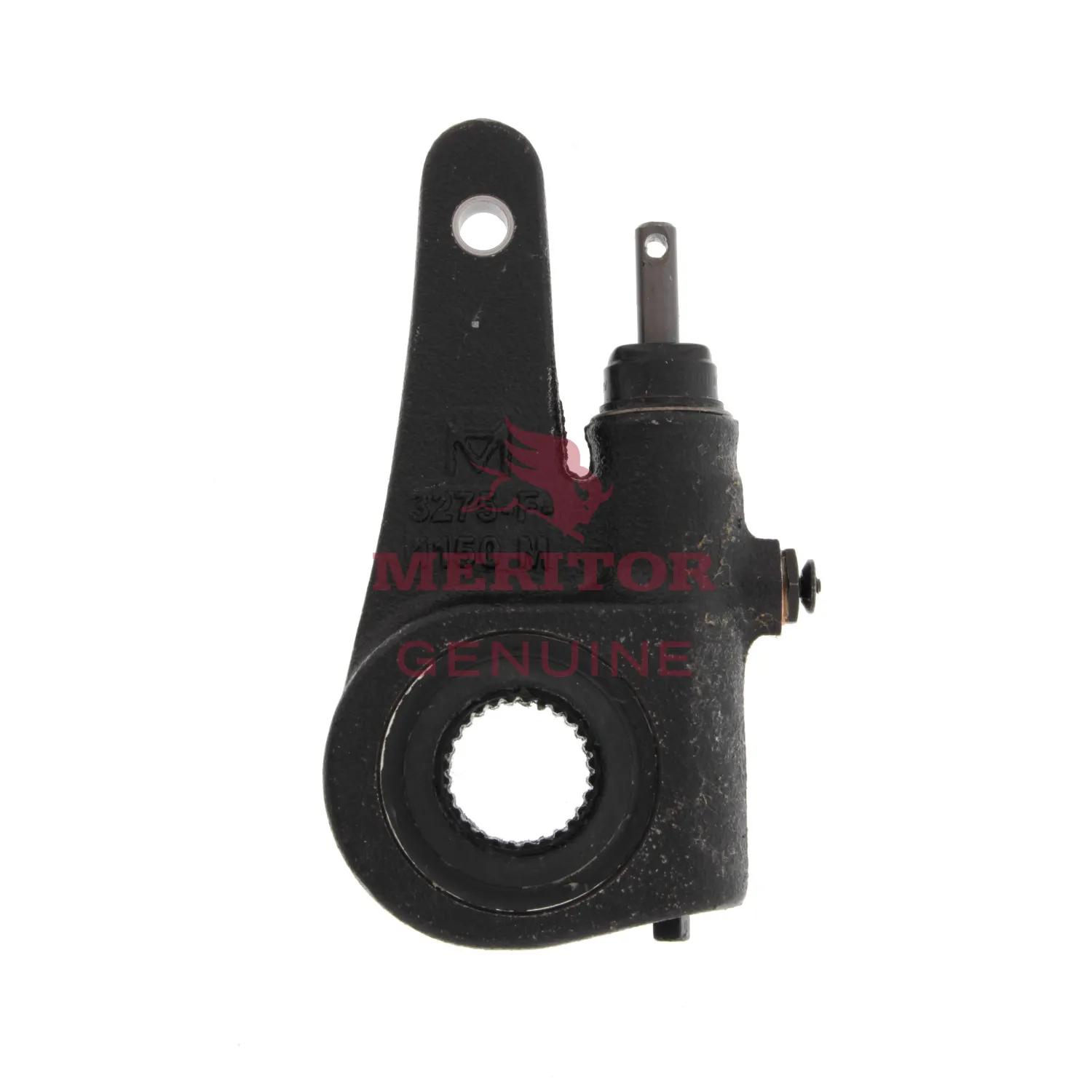

ASA, Spline: 1-1/2 in - 28, L: 5 1/2 in
#ROCR805012
Features & Benefits
- Enhances overall vehicle safety
- Ensures precise brake adjustment
- Increases brake system efficiency
- Features corrosion-resistant coating
- Provides reliable braking performance
- Minimizes brake system maintenance needs
- Meets industry standards and specifications
- Offers durability for extended service life
Specifications
| Arm Length # 1 | 5-1/2 in |
| Automatic or Manual | Automatic |
| Chamber Sizes | 16 in (40.64 cm) |
| Clevis Type | Unclevised |
| Maximum Torque | More than 45 inch pounds |
| Model | Meritor |
| Notes | Red piston. Drum brake. LX/MX 500 brake series. Unclevised |
| Number of Splines | 28 |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 28 |
| Type | Stroke-Sensing |
Interchanges & Equivalent parts:
| MERR805012 |
| 139.2839 |
| 8235-R805012 |
| 85101820 |
| ABP N42AS R805012 |
| ATIR805012 |
| R805012-RI |
| RWR805012 |
| TDA R805012 |
| TDAR805012 |
