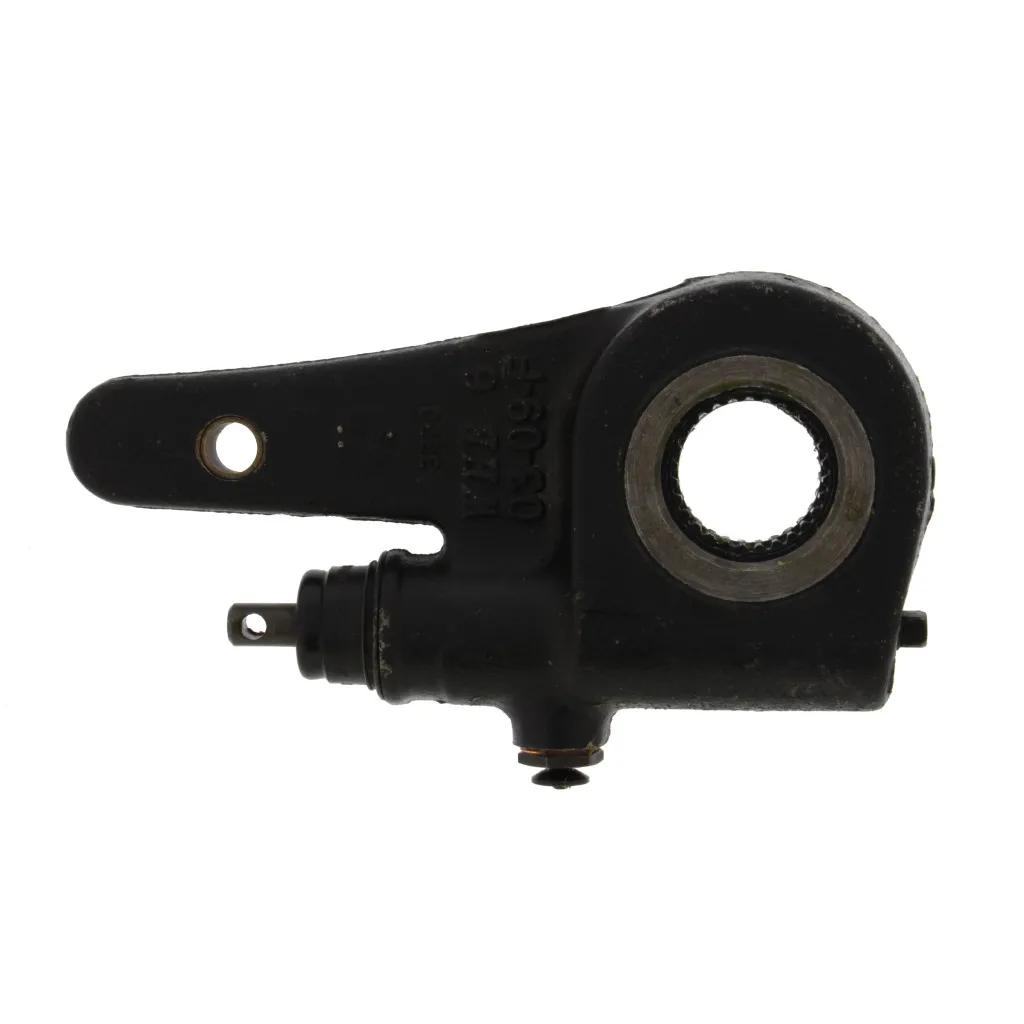

ASA, Spline: 1-1/2 in - 28, L: 5 in
#ROCR805011
Specifications
| Arm Length # 1 | 5 in |
| Automatic or Manual | Automatic |
| Chamber Sizes | 20 in (50.8 cm) |
| Clevis Type | Straight |
| Maximum Torque | More than 45 inch pounds |
| Model | Meritor |
| Notes | Yellow piston. Drum brake. LX/MX 500 brake series. Unclevised |
| Number of Splines | 28 |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 28 |
| Type | Stroke-Sensing |
Interchanges & Equivalent parts:
| 8235-R805011 |
| ATIR805011 |
| TDA R805011 |
| TDAR805011 |
