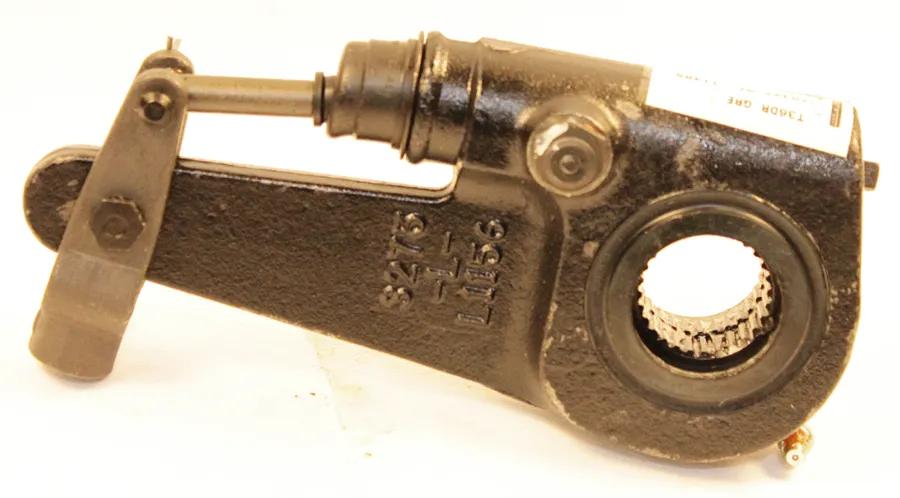

ASA, Spline: 1-1/2 in - 28, L: 6-1/2 in
#ROCR802512
Specifications
| Arm Length # 1 | 6-1/2 in |
| Automatic or Manual | Automatic |
| Brake Size | 21/4 in (51,44 cm) x 7 in (17,78 cm) |
| Chamber Sizes | 36 in (91.44 cm) |
| Clevis Thread Diameter (in.) | 5/8 in (1.59 cm) |
| Clevis Threads per inch | 18 in (45.72 cm) |
| Clevis Type | Straight |
| Maximum Torque | More than 45 inch pounds |
| Model | Meritor |
| Notes | Green piston. Drum brake. |
| Number of Splines | 28 |
| Production Part Number | A8-3275-D-1148 |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 28 |
| Type | Stroke-Sensing |
Interchanges & Equivalent parts:
| 8235-R802512 |
| 9628 R802512 |
| A7-3275-D-1148S |
| ATIR802512 |
| E-11403 |
| TDA R802512 |
| TDAR802512 |
| TWDR802512 |
| 40010011M1D |
| 05-563 |
| 28931415 |
| 400-10101 |
| 409-10240 |
| 409-10386 |
| 409-10398 |
| 409-10399 |
| 409-10416 |
| 409-10430 |
| 409-10471 |
| 808169 |
| 808171 |
| 808175 |
| 808178 |
| 813648 |
| A2-3275P718S |
| A2-3275W595S |
| AS1004 |
| AS1042 |
| E-6927B |
| E-6944 |
| MSA40010211 |
| S213991 |
