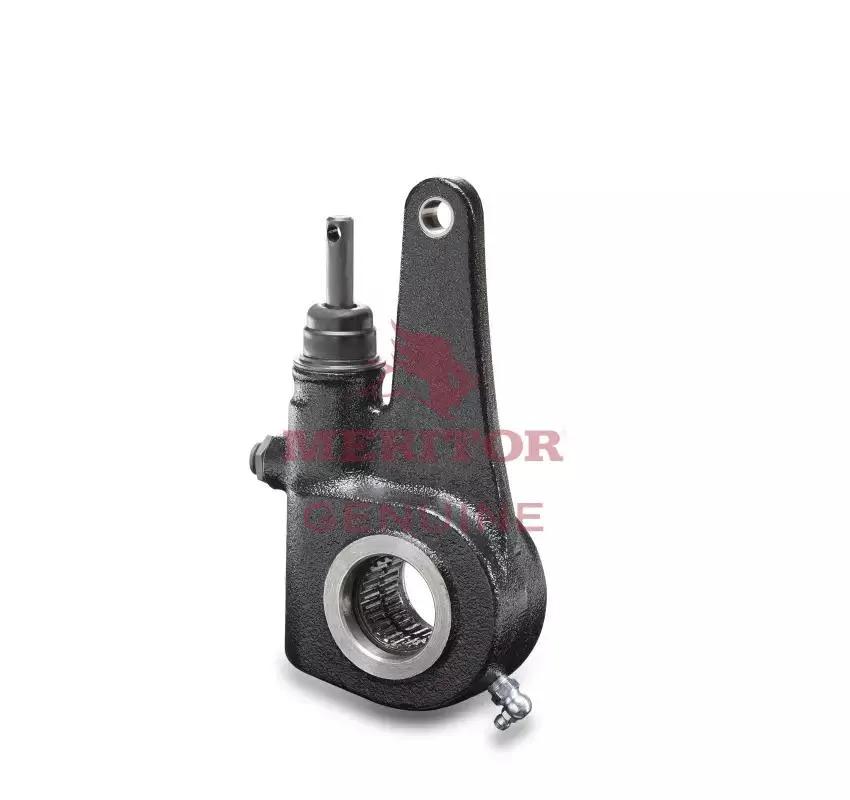

ASA, Spline: 1-1/2 in - 28, L: 6 in
#ROCR803057
Specifications
| Arm Length # 1 | 6 in |
| Automatic or Manual | Automatic |
| Chamber Sizes | 36 in (91.44 cm) |
| Clevis Type | Unclevised |
| Maximum Torque | More than 45 inch pounds |
| Model | Meritor |
| Notes | Green piston. Drum brake. |
| Number of Splines | 28 |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 28 |
| Type | Stroke-Sensing |
Interchanges & Equivalent parts:
| 3947655 |
| 8235-R803057 |
| ATIR803057 |
| R803057-RI |
| TDA R803057 |
| TDAR803057 |
| TWD R803057 |
| 05-562 |
| 40010200 |
| 40910234 |
