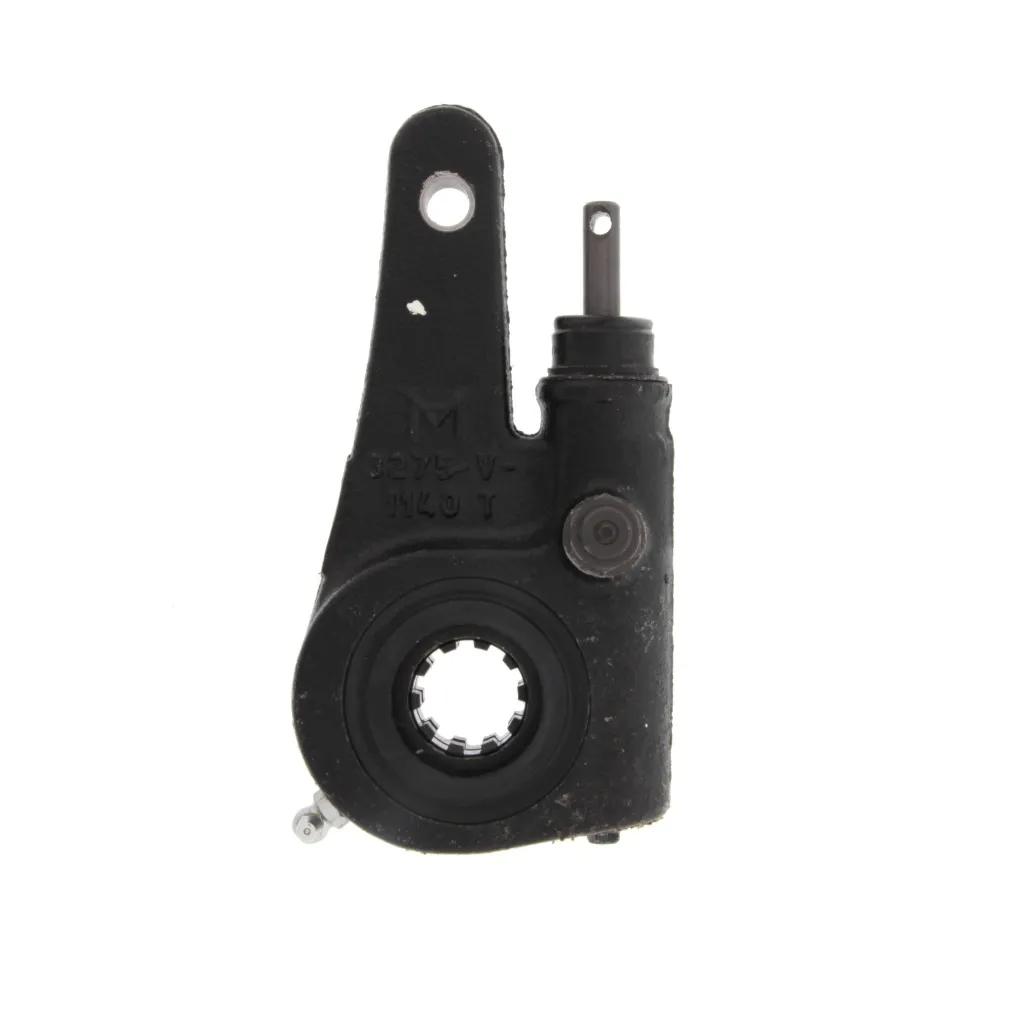

ASA, Spline: 1-1/4 in - 10, L: 5-1/2 in
#ROCR803004
Specifications
| Arm Length # 1 | 5-1/2 in |
| Automatic or Manual | Automatic |
| Chamber Sizes | 16 in (40.64 cm) |
| Clevis Type | Unclevised |
| Maximum Torque | More than 45 inch pounds |
| Model | Meritor |
| Notes | Red piston. Drum brake. |
| Number of Splines | 10 |
| Spline Diameter | 1-1/4 in (3.18 cm) |
| Spline Diameter-Spline Count | 1-1/4 in - 10 |
| Type | Stroke-Sensing |
Interchanges & Equivalent parts:
| 1691283C91 |
| 3947604 |
| ATIR803004 |
| R803004-RI |
| TDA R803004 |
| TDAR803004 |
| TWD R803004 |
| 05-570 |
