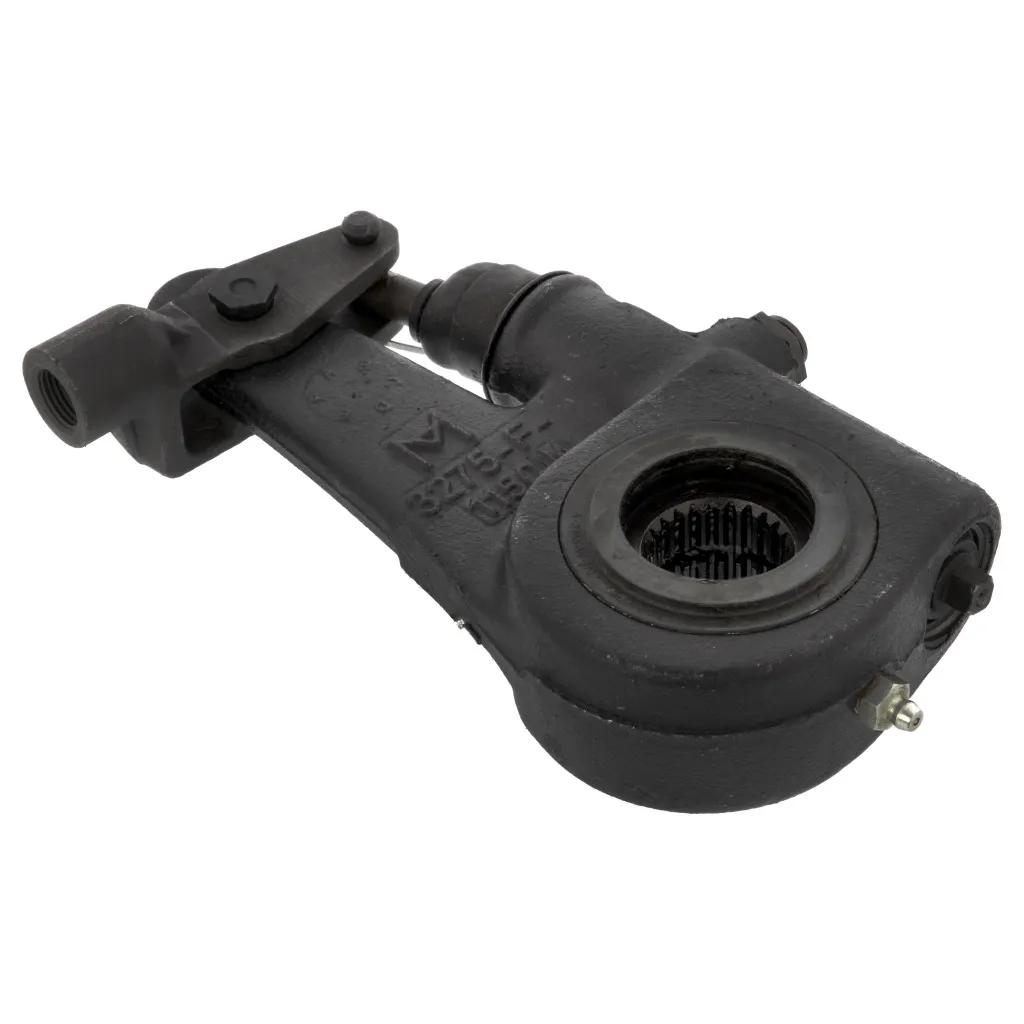

ASA, Spline: 1-1/4 in - 24, L: 5-1/2 in
#ROCR801782
Specifications
| Arm Length # 1 | 5-1/2 in |
| Bushing I.D. | 1/2 in (1.27 cm) |
| Chamber Sizes | 20 in (50.8 cm) |
| Clevis Thread Diameter (in.) | 5/8 in (1.59 cm) |
| Clevis Threads per inch | 18 in (45.72 cm) |
| Clevis Type | Straight |
| Maximum Torque | More than 45 inch pounds |
| Model | Meritor |
| Notes | Red piston. Drum brake. Opposite hand is R801783. |
| Number of Splines | 24 |
| Production Part Number | A13275R1188S |
| Spline Diameter | 1-1/4 in (3.18 cm) |
| Spline Diameter-Spline Count | 1-1/4 in - 24 |
| Type | Stroke-Sensing |
Interchanges & Equivalent parts:
| 1677252C91 |
| 8235-R801782 |
| 85103036 |
| ATIR801782 |
| R801782-RI |
| TDA R801782 |
| TDAR801782 |
