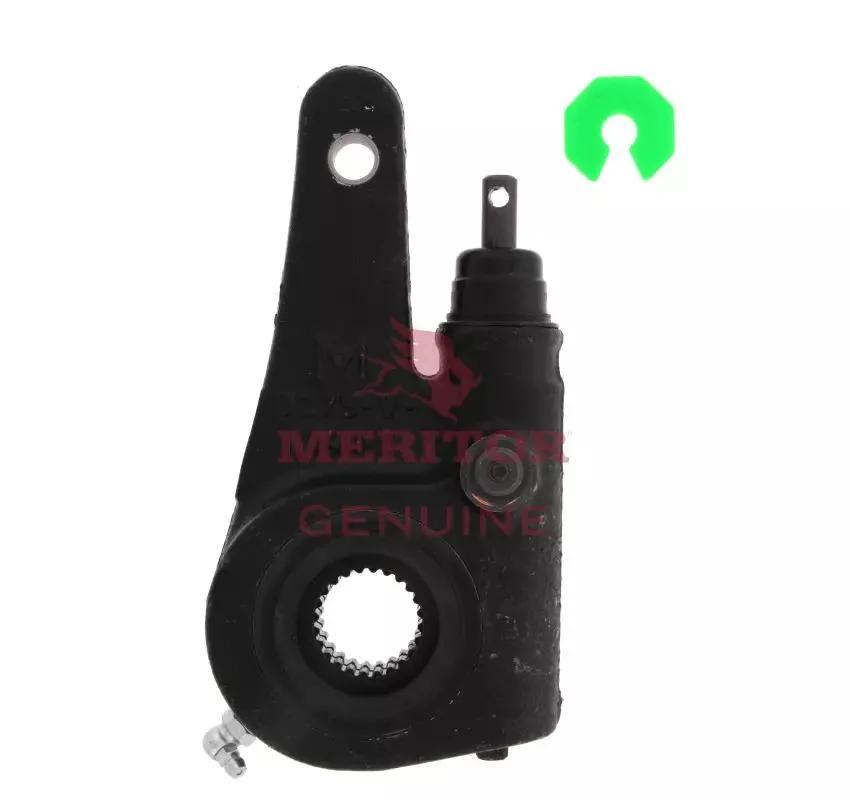

ASA, Spline: 1-1/4 in - 24, L: 5 1/2 in
#ROCR803070
Specifications
| Arm Length # 1 | 5-1/2 in |
| Automatic or Manual | Automatic |
| Chamber Sizes | 20 in (50.8 cm) |
| Clevis Type | Unclevised |
| Maximum Torque | More than 45 inch pounds |
| Model | Meritor |
| Notes | Red piston. Drum brake. Special grease fitting locations. |
| Number of Splines | 24 |
| Spline Diameter | 1-1/4 in (3.18 cm) |
| Spline Diameter-Spline Count | 1-1/4 in - 24 |
| Type | Stroke-Sensing |
Interchanges & Equivalent parts:
| 2018225C91 |
| 3949820 |
| 8235-R803070 |
| ATIR803070 |
| CS52336 |
| R803070-RI |
| RWR803070 |
| TDA R803070 |
| TDAR803070 |
| 05-572 |
