Automann Air Spring, Double Convoluted Air Spring, 7480 at 80 psi, 9350 at 100 psi, 4.1 Compressed Length, 13.8 Extended Length, 15.8, 12.2 in Height
#MZH566.CT64590
Product Overview
Air Spring, Double Convoluted Air Spring, 7480 at 80 psi, 9350 at 100 psi, 4.1 Compressed Length, 13.8 Extended Length, 15.8, 12.2 in Height, For EZ Ride Hendrickson Trailer Ridewell Watson and Chalin
Features & Benefits
- Automann bellows #: SP2B34RB

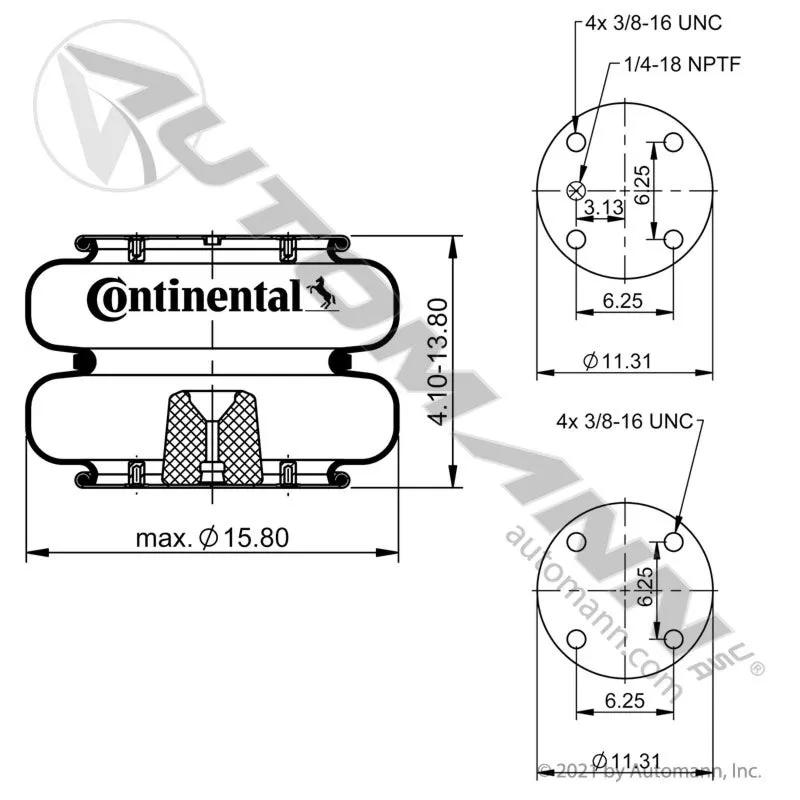

- Bottom plate hole/stud Qty: 4, Bottom plate dia. (C): 11.31, Bottom plate C to C dia. (D): 6.25, Bottom plate alignment: parallel, bumper: yes
- Contitech bellows#: FD 530-30
- Firestone bellows#: 21-2
- Goodyear bellows#: 578-92-3-356
- Natural freq. (CPM): 90
- Top plate C to C Dia. (B): 6.25
- Top plate dia. (a): 11.31
- Top plate hole/stud qty: 4
- Triangle bellows #: 6336
Specifications
| Air Spring Type | Double Convoluted |
| Application | EZ Ride Hendrickson Trailer Ridewell Watson and Chalin |
| Compressed Length | 4.1 |
| Extended Length | 13.8 |
| Height | 12.2 in |
| Quantity | 1 |
| UPC | 889626538780 |
| Weight | 18.87 lb |
| Capacity | 7480 at 80 psi, 9350 at 100 psi |
| Fitting Size | 15.8 |
| Manufacturer Part Number | 566.CT64590 |
| Product Category | Air Spring |
