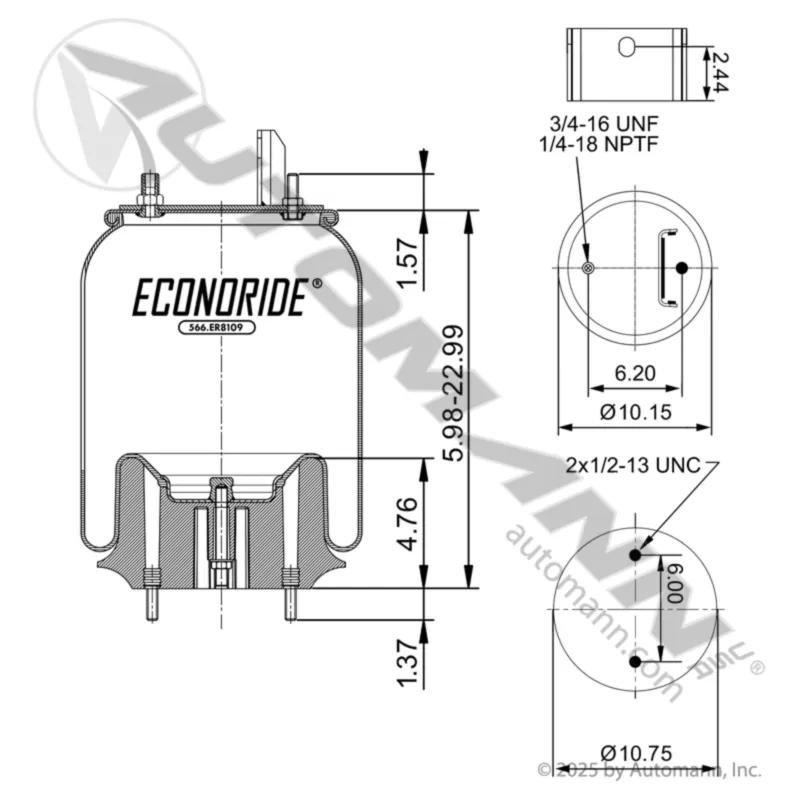

Automann Air Spring, Rolling Lobe Air Spring, 6 in Compressed Length, 23 in Extended Length, 10.75 in, For Hendrickson
#MZH566.ER8109
Features & Benefits
- Automann bellows #: 1DKM58
- Bottom plate type: plastic
- Top plate hole/stud qty: 2
- Top plate diameter (A): 10.38
- Top plate C to C diameter (B): 6.2
- Bottom plate hole/stud qty: 2
- Bottom plate diameter (C): 10.75
- Bumper: no
- Bracket: AB9875P
Specifications
| Air Spring Type | Rolling Lobe |
| Application | Hendrickson |
| Compressed Length | 6 in |
| Extended Length | 23 in |
| Quantity | 1 |
| UPC | 889626733505 |
| Weight | 23.5 lb |
| Fitting Size | 10.75 in |
| Manufacturer Part Number | 566.ER8109 |
| Product Category | Air Spring |
