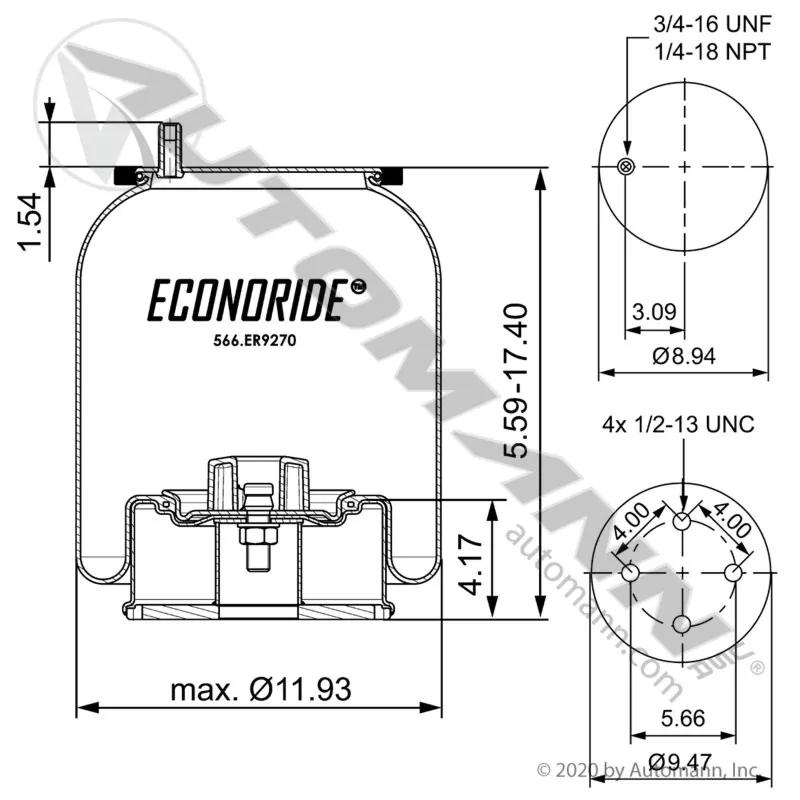

Automann Air Spring, Rolling Lobe Air Spring, 6300 lb at 80 psi, 7900 lb at 100 psi, 6.6 in Compressed Length, 17.3 in Extended Length
#MZH566.ER9270
Product Overview
Air Spring, Rolling Lobe Air Spring, 6300 lb at 80 psi, 7900 lb at 100 psi, 6.6 in Compressed Length, 17.3 in Extended Length, 11.9 in, 9 in Height, For Hendrickson Trailer
Features & Benefits
- Automann bellows #: 1DK23I
- Firestone bellows#: 1T15VM-4.0, 1T15VP-4.0
- Goodyear bellows#: 566-26-3-053, 566-26-3-036
- Contitech bellows#: 9 10-13.5
- Triangle bellows #: 6385
- Natural freq. (CPM): 89
- Bottom plate type: steel
- Top plate hole/stud qty: 1
- Top plate diameter (A): 9
- Bottom plate hole/stud qty: 4, bottom plate diameter (C): 9.47, bottom plate C to C diameter (D): 5.66 in, bottom part #: BS09758, bumper: yes
Specifications
| Air Spring Type | Rolling Lobe |
| Application | Hendrickson Trailer |
| Bottom Plate Diameter | 9.47 in |
| Bottom Plate Hole/Stud Qty | 4 |
| Bumper | Yes |
| Compressed Length | 6.6 in |
| Contitech Bellow # | 9 10-13.5 |
| Extended Length | 17.3 in |
| Height | 9 in |
| Plate Type | Steel |
| Quantity | 1 |
| Top Plate Diameter | 9 in |
| Triangle Bellows Number | 6385 |
| UPC | 889626398155 |
| Weight | 27.76 lbs |
| Capacity | 6300 lbs at 80 psi, 7900 lbs at 100 psi |
| Fitting Size | 11.9 in |
| Manufacturer Part Number | 566.ER9270 |
| Product Category | Air Spring |
