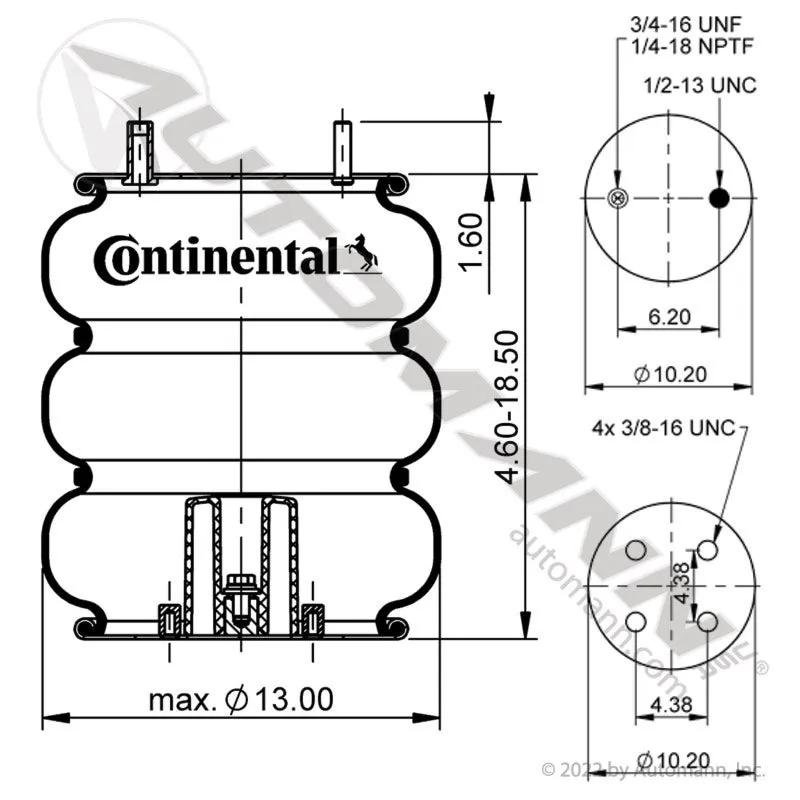

Automann Air Spring, Triple Convoluted Air Spring, 4.6 Compressed Length, 18.5 Extended Length, 13, For Hendrickson Trailer

#MZH566.CT78687

See More
See Less

Features & Benefits


  • Bottom plate alignment: parallel
  • Bottom plate hole/stud qty: 4
  • Bracket: no
  • Bumper: yes
  • Contitech Bellows#: FT 430-35
  • Goodyear bellows#: 578-93-3-103
  • Top Plate C to C Dia. (B): 6.2
  • Top plate dia. (a): 10.2
  • Top plate hole/stud qty: 2

Specifications


Air Spring Type Triple Convoluted
Application Hendrickson Trailer
Compressed Length 4.6
Extended Length 18.5
Quantity 1
UPC 889626580352
Weight 16.2 lb
Fitting Size 13
Manufacturer Part Number 566.CT78687
Product Category Air Spring
