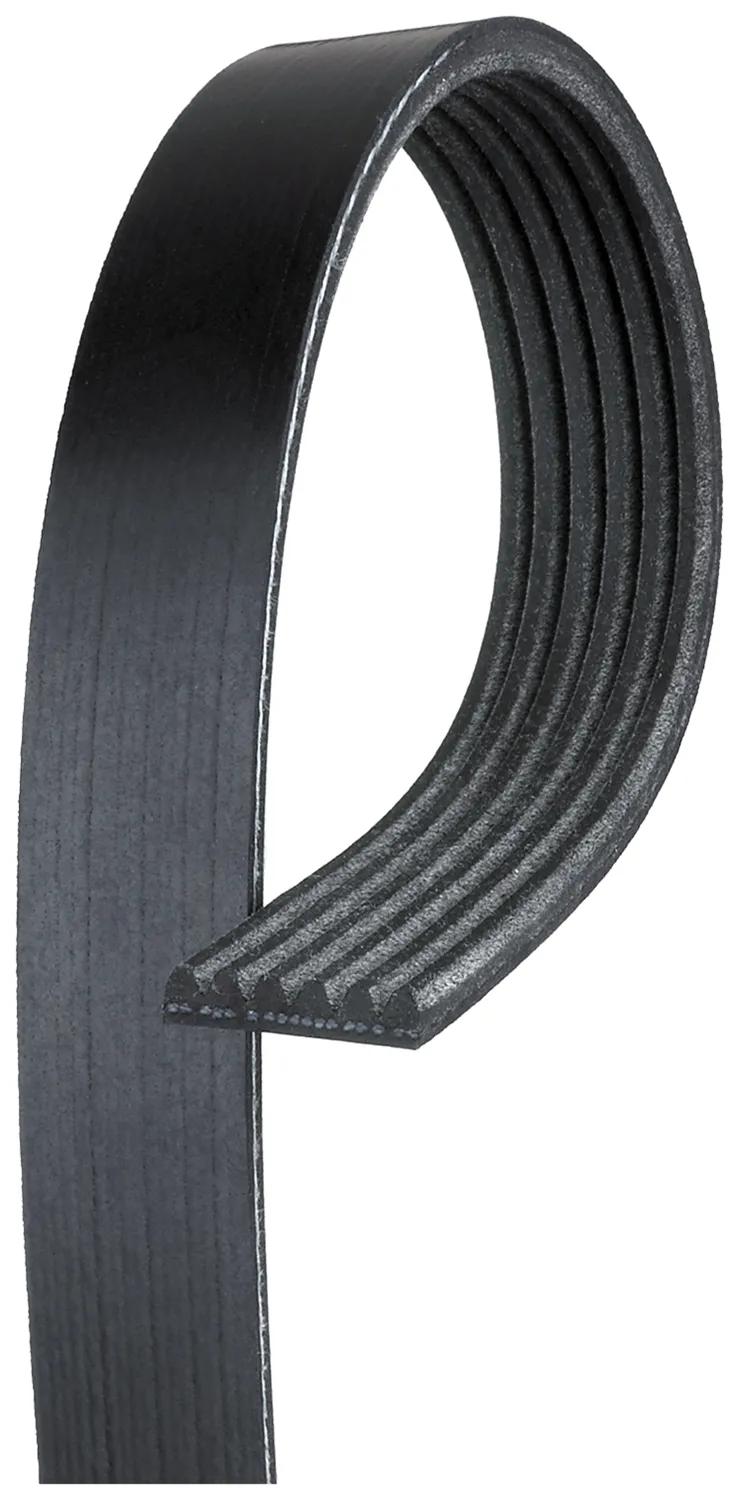

Automotive V-Ribbed Belt, L: 51.22 in, 6 Grooves
#GATK060512
Product Overview
PEAK PERFORMANCE BELT AFTER BELT: Our Micro-V Belts are the result of over 100 years in pursuit of excellence and continuous improvement. Gates product application and material engineering teams benchmark OEM constructions and length as the goal for each belt. But we don’t stop there. We're always pushing to optimize materials and construction to reduce noise, vibration and premature failure. The result? The quietest and highest performing belts in the industry.
Features & Benefits
- Designed for small diameter pulleys, backside idlers, and for use with (or without) automatic tensioners
- Gates recommends replacing serpentine belts at 90,000 to prevent vehicle breakdowns, or as advised by the vehicle manufacturer
- Flexible construction allows the belt to withstand billions of topside and backside bends in ABDS applications, resulting in long belt life
- Special belt construction eliminates belt noise, reduces tension loss, and solves problem drive applications
- Unique form grinding of each individual belt assures precise dimensional control
- Meets or exceeds SAE J1459, SAE J2432, and SAE J1596 specifications
- Meets or exceeds all specifications from the Original Equipment Manufacturer
- Utilizes advanced materials like Aramid Fiber found in bullet-proof vests and crack and heat-resistant EPDM materials
Specifications
| Belt Top Width | 3/4 to 7/8 in (1.91 to 2.24 cm) |
| Length | 51.82 in |
| Material | Polyester |
| OE Comparison Rating | OE Performance |
| # of Grooves | 6 |
| Section | K |
| Length Range | 50 to 54.99 in |
| Type | Automotive V-Ribbed Belt (Standard) |
| Weight | 0.29 lb (0.13 kg) |
| Width | 13/16 in (2.06 cm) |
Interchanges & Equivalent parts:
| 1172030B00 |
| 4060510 |
| GYB4060510 |
| 0126709005 |
| 1172030R00 |
| 1172030R10 |
| 14-0717-4 |
| 141-1368 |
| 146-061300 |
| 201094 |
| 25-060512 |
| 3401162 |
| 406-0512 |
| 4060502 |
| 4060512 |
| 5060510DR |
| 6K1300 |
| 6K512 |
| 6PK1300 |
| 6PK1305 |
| 6PVK1295 |
| 740356 |
| A-512K6 |
| CM5E 8620 AB |
| CP9Z 8620 A |
| CP9Z 8620 AA |
| JK6-520 |
| JK6-520-A |
| K5126 |
| PK060512 |
| 510K6 |
