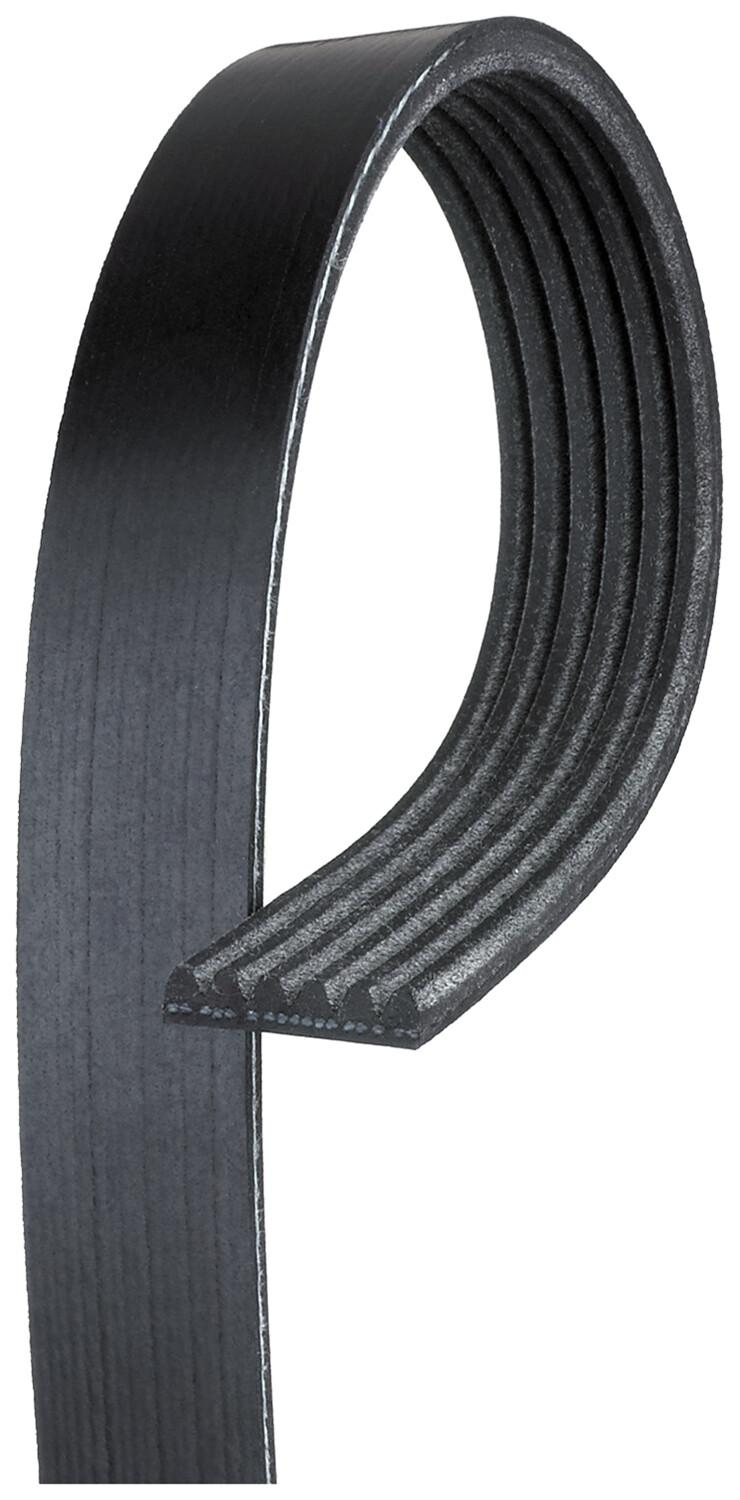

Automotive V-Ribbed Belt, L: 97.02 in, 6 Grooves
#GATK060970
Product Overview
PEAK PERFORMANCE BELT AFTER BELT: Our Micro-V Belts are the result of over 100 years in pursuit of excellence and continuous improvement. Gates product application and material engineering teams benchmark OEM constructions and length as the goal for each belt. But we don’t stop there. We're always pushing to optimize materials and construction to reduce noise, vibration and premature failure. The result? The quietest and highest performing belts in the industry.
Features & Benefits
- Designed for small diameter pulleys, backside idlers, and for use with (or without) automatic tensioners
- Gates recommends replacing serpentine belts at 90,000 to prevent vehicle breakdowns, or as advised by the vehicle manufacturer
- Flexible construction allows the belt to withstand billions of topside and backside bends in ABDS applications, resulting in long belt life
- Special belt construction eliminates belt noise, reduces tension loss, and solves problem drive applications
- Unique form grinding of each individual belt assures precise dimensional control
- Meets or exceeds SAE J1459, SAE J2432, and SAE J1596 specifications
- Meets or exceeds all specifications from the Original Equipment Manufacturer
- Utilizes advanced materials like Aramid Fiber found in bullet-proof vests and crack and heat-resistant EPDM materials
Specifications
| Belt Top Width | 3/4 to 7/8 in (1.91 to 2.24 cm) |
| Length | 97.69 in |
| Material | Polyester |
| OE Comparison Rating | OE Performance |
| # of Grooves | 6 |
| Section | K |
| Length Range | 90 to 99.99 in |
| Type | Automotive V-Ribbed Belt (Standard) |
| Weight | 0.55 lb (0.25 kg) |
| Width | 13/16 in (2.06 cm) |
Interchanges & Equivalent parts:
| 4060970 |
| GYB4060970 |
| 077903137D |
| 077903137E |
| 10085752 |
| 10085783 |
| 1139970092 |
| 14-0522-6 |
| 141-1400 |
| 146-062460 |
| 1X4E 8620 CB |
| 1X4E 8620 DA |
| 1X4E 8620 DB |
| 1X4Z 8620 DA |
| 202072 |
| 202854 |
| 203097 |
| 203342 |
| 204412 |
| 204624 |
| 204640 |
| 204764 |
| 204908 |
| 205086 |
| 206139 |
| 206195 |
| 25-060970 |
| 25-060970HD |
| 406-0970 |
| 4060969 |
| 4612277 |
| 5060970 |
| 5060970DR |
| 5281177 |
| 53010275 |
| 6547514 |
| 6K970 |
| 6K970AP |
| 6PK2463 |
| 6PK2464 |
| 6PK2465 |
| 6PK2467 |
| 6PK2470 |
| 6PVK2465 |
| 88986814 |
| 970K6 |
| 970K6MK |
| A-970K6 |
| C2S24900 |
| D8410006060970 |
| E5ZE 8620 DA |
| E5ZZ 8620 A |
| E7TA 8620 ARA |
| E7TE 8620 ARA |
| E8TZ 8620 M |
| E8TZ 8620 W |
| F0TA 8620 NA |
| F0TZ 8620 E |
| F5TE 8620 EA |
| F6TE 8620 HA |
| F6TZ 8620 HA |
| F75E 8620 BA |
| GT4060970 |
| JK6 973 A |
| JK6-973-A |
| JK6-976 |
| JK6-976-A |
| JK6-976-B |
| JK6-976-C |
| PK060970 |
| R517039 |
| XC2S 24900 |
| 6PK2460 |
| HLC1077044 |
