Axle Shaft Universal Joint - 1310WJ Series
#SPI5-760X
Features & Benefits
Features & Benefits
SPI5-760X - Features Documents - A
SPI5-760X - Features Documents - B
SPI5-760X - Features Documents - C
SPI5-760X - Features Documents - D
SPI5-760X - Features Documents - E
SPI5-760X - Features Documents - F
SPI5-760X - Features Documents - G
SPI5-760X - Features Documents - H
SPI5-760X - Features Documents - I
SPI5-760X - Features Documents - J
SPI5-760X - Features Documents - K
SPI5-760X - Features Documents - L
SPI5-760X - Features Documents - M
SPI5-760X - Features Documents - N
SPI5-760X - Features Documents - O
SPI5-760X - Features Documents - P
- Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.
- Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.
- Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments.
- Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature.

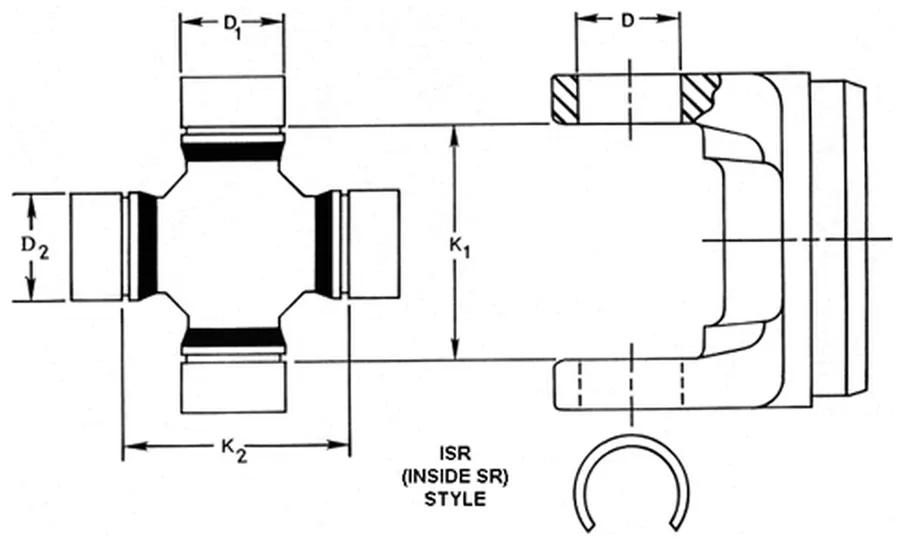

Specifications
| Bearing Cap Finish | Round |
| Bearing Cap Diameter (1) | 1.1875 |
| Bearing Cap Type | Round |
| Bearing Cap Type (B) | ISR: Inside Snap Ring |
| Bearing Cap Diameter (2) | 1.1875 |
| Bearing Cap Type (A) | ISR: Inside Snap Ring |
| Cross Length (in.) | 2-3/16 po & 2-3/16 po (5,56 cm & 5,56 cm) |
| Greasable | No |
| Grease Type | N.L.G.I. Grade 2 |
| Grease Zerk Included | Not Required |
| Material | Steel |
| Pre Greased | Yes |
| Seal Material | Rubber |
| Series | 1310WJ |
| Snap Ring (2) | 2-3/16 in (5.56 cm) |
| Snap Ring (1) | 2-3/16 in (5.56 cm) |
| Snap Ring Included | Yes |
| Weight | 0.59 lb (0.27 kg) |
Interchanges & Equivalent parts:
| 5-297-1X |
| 5-297X |
| 52971X |
| 5297X |
| SPI52971X |
| SPI5-297-1X |
| 2-0760 |
| 5760X |
| BL371 |
| D5760X |
| E5760X |
| P5-297X |
| SP 5 760X |
| SP 5760X |
| TWD5760X |
| 10297 |
| 5 760X |
| 10297BF |
| HD5297X |
| K297HD |
