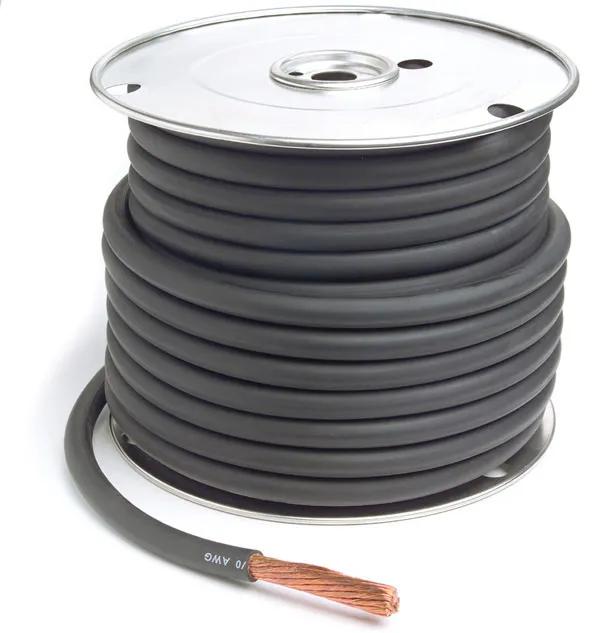

Battery Cable 1/0 GA, Type SGR, 100 ft, Black, 100% Copper, Rated 60V
#GRO82-5703-UNIT
Product Overview
Made from 100% copper cable, this Type SGR battery cable meets all SAE J1127 specifications and is rated at 60 volts. It features a general purpose ground rubber jacket rated from -40°C (-40°F) to 105°C (221°F), providing durability and reliability for various applications.Battery Cable, SGR, Copper Conductor, Insulation Material: EPDM, Black Insulation, 1/0 GA Conductor, 0.525 in Dia, 100 ft L, Standards: SAE J1127, 133 Strands, Temperature Rating: -40 to 105 °C, 60 V
Features & Benefits
- Rated @ 60V
- 100% Copper Cable
- All Battery Cable is spooled
- Meets all SAE code J1127 specifications
- General Purpose Ground Rubber jacket rated at -40°C (-40°F) to 90°C (194°F)
Specifications
| Color | Black |
| Gauge | 1/0 ga |
| Length | 100 ft |
| Type | Battery Cables - Type SGR |
| UPC | 621935001797 |
| Conductor Material | Copper |
| Conductor Size | 1/0 GA |
| Diameter | 0.525 in |
| Insulation Color | Black |
| Insulation Material | EPDM |
| Standards | SAE J1127 |
| Strands | 133 |
| Temperature Rating | -40 to 105 °C |
| Voltage Rating | 60 V |
| Product Category | Battery Cable |
