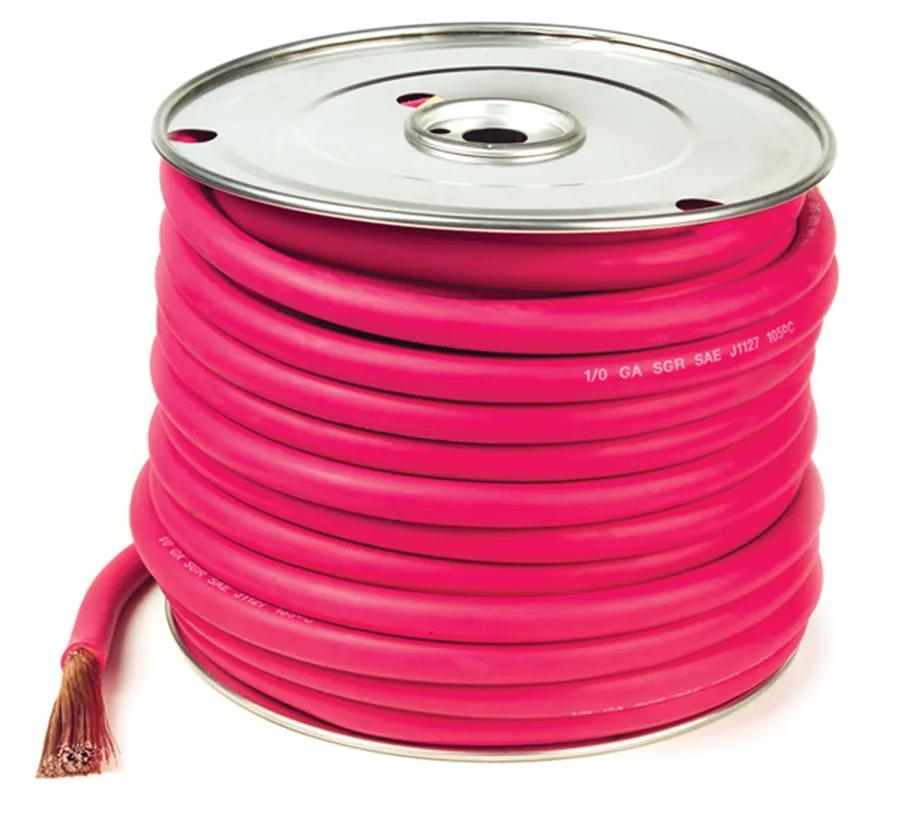

Battery Cable, Red, 1/0 Gauge, 100 Ft Spool, Type SGR, 60V, 133 Strands, Copper Conductor
#GRO82-6703
Product Overview
Our Type SGR Bulk Battery Cable is stranded with 100% copper conductor and jacketed in chlorinated polyethylene (CPE). It meets all SAE code J1127 specifications and is rated at 60 V. The cable features a diameter of 0.525 inches with 133 strands, providing excellent conductivity and flexibility.Battery Cable, SGR, Red Insulation, Copper Conductor, EPDM Insulation, 1/0 GA Conductor, 0.525 in Dia, SAE J1127 Standards, 133 Strands, -40 to 105 °C Temperature Rating, 60 V, 100 ft Length
Features & Benefits
- Rated @ 60V
- 100% Copper Cable
- All Battery Cable is spooled
- Meets all SAE code J1127 specifications
- General Purpose Ground Rubber jacket rated at -40°C (-40°F) to 90°C (194°F)
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- 1,000 Foot Custom Sized Spools Also Available by Special Order.
- We Also Offer a Full Line of Lugs, Terminals, Solder Slugs, Heat Shrink, Cutters, Crimpers, and Tie Straps to Custom Make Battery Cables at Your Service Facility.
Specifications
| Color | Red |
| Gauge | 1/0 ga |
| Length | 100 ft |
| Material | Copper |
| Quantity | 1 |
| Temperature Range | -40°C (-40°F) to 90°C (194°F) |
| Type | Type SGR |
| Conductor Material | Copper |
| Conductor Size | 1/0 GA |
| Diameter | 0.525 in |
| Insulation Color | Red |
| Insulation Material | CPE |
| Standards | SAE J1127 |
| Strands | 133 |
| Temperature Rating | -40 to 105 °C |
| Voltage Rating | 60 V |
| Product Category | Battery Cable |
Interchanges & Equivalent parts:
| 3-509-100 |
| 701/0A5-1TEC |
| 701/0A51 |
| 7376-826703 |
| 82-6703GR0 |
| GRO 82 6703 |
| GRO 82-6703 |
| GRO826703 |
| ZBJ826703 |
| ZBJD826703 |
| 769274 |
| 826703 |
| 3509100 |
| 422258 |
| 702A51 |
| 736122 |
| 82-6703 |
| 784618 |
| 826703FT |
