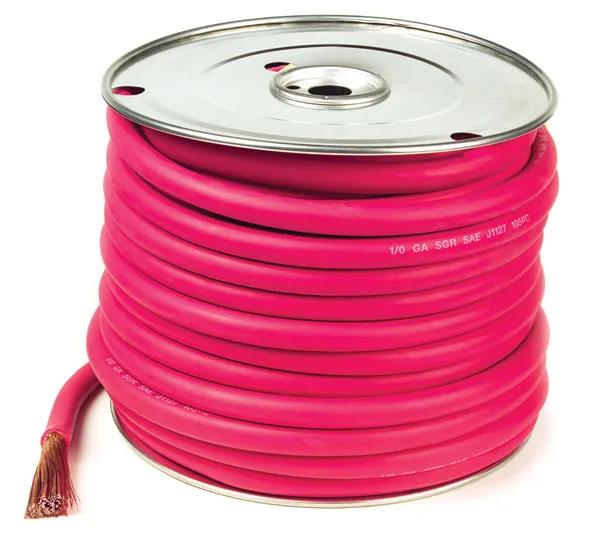

Battery Cable, SGR, 0.375 in Dia, 133 Strands, Red Insulation, Copper Conductor, 60 V
#GRO82-6712-P500
Product Overview
Made from 100% copper cable, our type SGR battery cable meets all SAE code J1127 specifications and is rated at 60 V.Battery Cable, SGR, Copper Conductor, Insulation Material: EPDM, Red Insulation, 0.375 in Dia, 500 ft Length, Standards: SAE J1132, 133 Strands, -40 to 22 °F, 60 V
Features & Benefits
- Rated at 60 V
- 100% copper cable
- All battery cable is spooled
- Meets all SAE code J1127 specifications
Specifications
| Length | 500 ft |
| Quantity | 1 |
| Type | SGR |
| VMRS Code | 032-001-002 |
| Conductor Material | Copper |
| Diameter | 0.375 in |
| Insulation Color | Red |
| Insulation Material | EPDM |
| Standards | SAE J1132 |
| Strands | 133 |
| Temperature Rating | -40 to 22 °F |
| Voltage Rating | 60 V |
| Manufacturer Part Number | 82-6712-P500 |
| Product Category | Battery Cable |
