Battery Cable, SGR, 2 Gauge, 50 Ft Spool, Red, 100% Copper, 60V Rated
#GRO82-6710
Product Overview

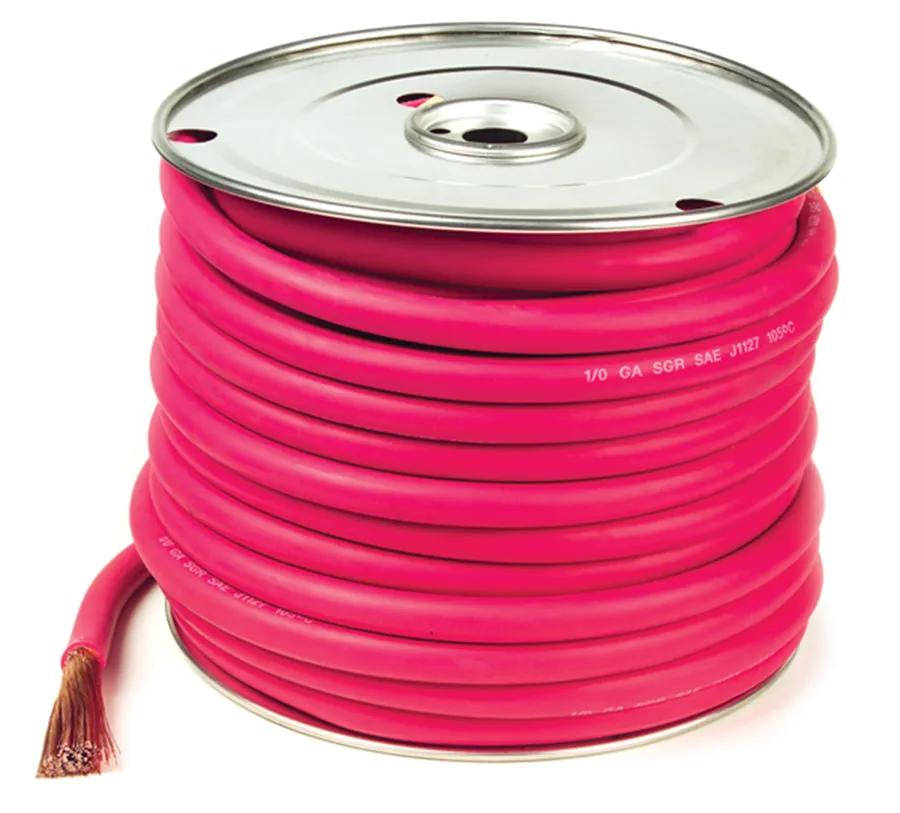

Our Type SGR Bulk Battery Cable is stranded with 100% copper conductor and jacketed in chlorinated polyethylene (CPE). It meets all SAE J1127 specifications and is rated at 60 V. The cable features 133 strands with a diameter of 0.438 inches, providing excellent conductivity and flexibility.Battery Cable, SGR, Red Insulation, Copper Conductor, EPDM Insulation, 2 GA Conductor, 0.438 in Dia, SAE J1127 Standards, 133 Strands, -40 to 105 °C Temperature Rating, 60 V, 50 ft Length
Features & Benefits
- Rated @ 60V
- 100% Copper Cable
- All Battery Cable is spooled
- Meets all SAE code J1127 specifications
- General Purpose Ground Rubber jacket rated at -40°C (-40°F) to 90°C (194°F)
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- 1,000 Foot Custom Sized Spools Also Available by Special Order.
- We Also Offer a Full Line of Lugs, Terminals, Solder Slugs, Heat Shrink, Cutters, Crimpers, and Tie Straps to Custom Make Battery Cables at Your Service Facility.
Specifications
| Length | 50 ft |
| Type | Battery Cables - Type SGR |
| UPC | 621935027964 |
| Conductor Material | Copper |
| Conductor Size | 2 Gauge |
| Diameter | 0.438 in |
| Insulation Color | Red |
| Insulation Material | Chlorinated Polyethylene (CPE) |
| Number of Conductors | 1 |
| Standards | SAE J1127 |
| Strands | 133 |
| Temperature Rating | -40°C (-40°F) to 90°C (194°F) |
| Voltage Rating | 60 V |
| Product Category | Battery Cable |
Interchanges & Equivalent parts:
| 7376-826710 |
| 82-6710GR0 |
| GRO 82 6710 |
| GRO826710 |
| 82-6710 |
| 781131 |
| ZBJ826710 |
| ZBJD826710 |
| 826710 |
| 826710FT |
| 4632 |
