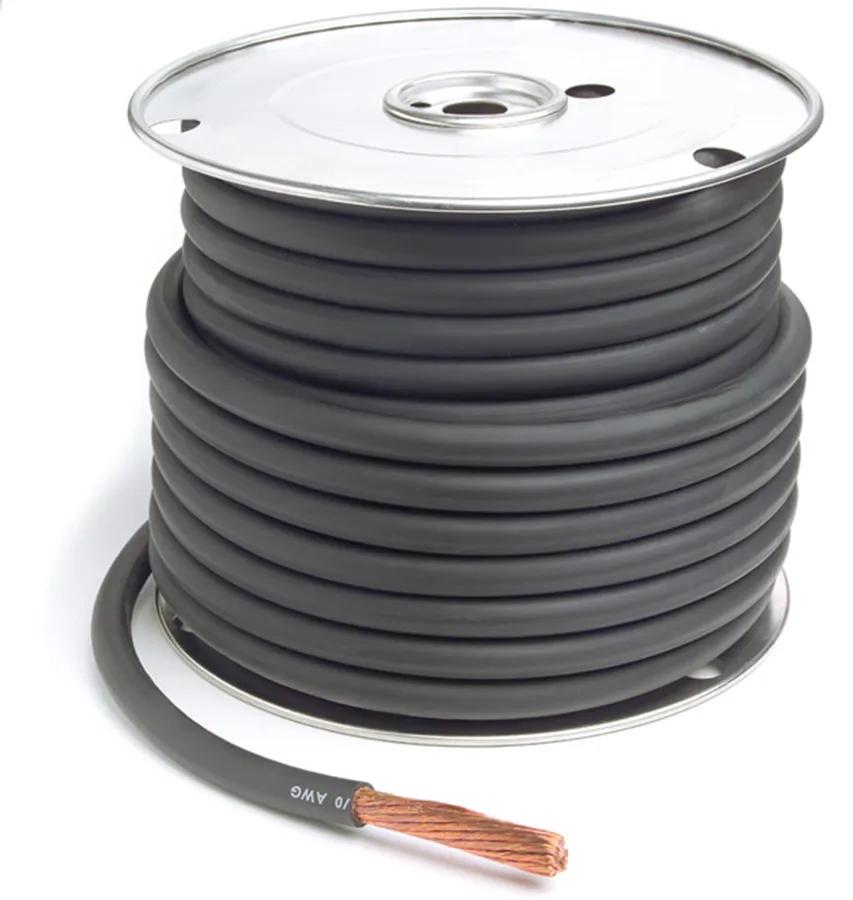

Battery Cable, SGR Type, 2 Gauge, 50 Ft Spool, Black, 100% Copper, 60V Rated
#GRO82-5710
Product Overview
Our Type SGR Bulk Battery Cable is stranded with 100% copper conductor and jacketed in chlorinated polyethylene (CPE). It meets all SAE J1127 specifications and is rated at 60 volts. The cable features 133 strands with a diameter of 0.438 inches, providing excellent conductivity and flexibility.Battery Cable, SGR, Black Insulation, Copper Conductor, EPDM Insulation, 2 GA Conductor, 0.438 in Dia, SAE J1127 Standards, 133 Strands, -40 to 105 °C Temperature Rating, 60 V, 50 ft Length
Features & Benefits
- Rated @ 60V
- 100% Copper Cable
- All Battery Cable is spooled
- Meets all SAE code J1127 specifications
- General Purpose Ground Rubber jacket rated at -40°C (-40°F) to 90°C (194°F)
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- 1,000 Foot Custom Sized Spools Also Available by Special Order.
- We Also Offer a Full Line of Lugs, Terminals, Solder Slugs, Heat Shrink, Cutters, Crimpers, and Tie Straps to Custom Make Battery Cables at Your Service Facility.
Specifications
| Length | 50 ft |
| Quantity | 1 |
| Type | SGR |
| Conductor Material | Copper |
| Conductor Size | 2 GA |
| Diameter | 0.438 in |
| Insulation Color | Black |
| Insulation Material | Chlorinated Polyethylene (CPE) |
| Number of Conductors | 1 |
| Standards | SAE J1127 |
| Strands | 133 |
| Temperature Rating | -40 to 105 °C |
| Voltage Rating | 60 V |
| Product Category | Battery Cable |
Interchanges & Equivalent parts:
| 82-5710 |
| 780207 |
| 825710 |
| 825710FT |
| 058237 |
| 702A1Q |
| 7376-825710 |
| 82-5710GR0 |
| GRO 82 5710 |
| GRO825710 |
| ZBJ825710 |
| ZBJD825710 |
| 736105 |
| 736163 |
| 8102-B |
