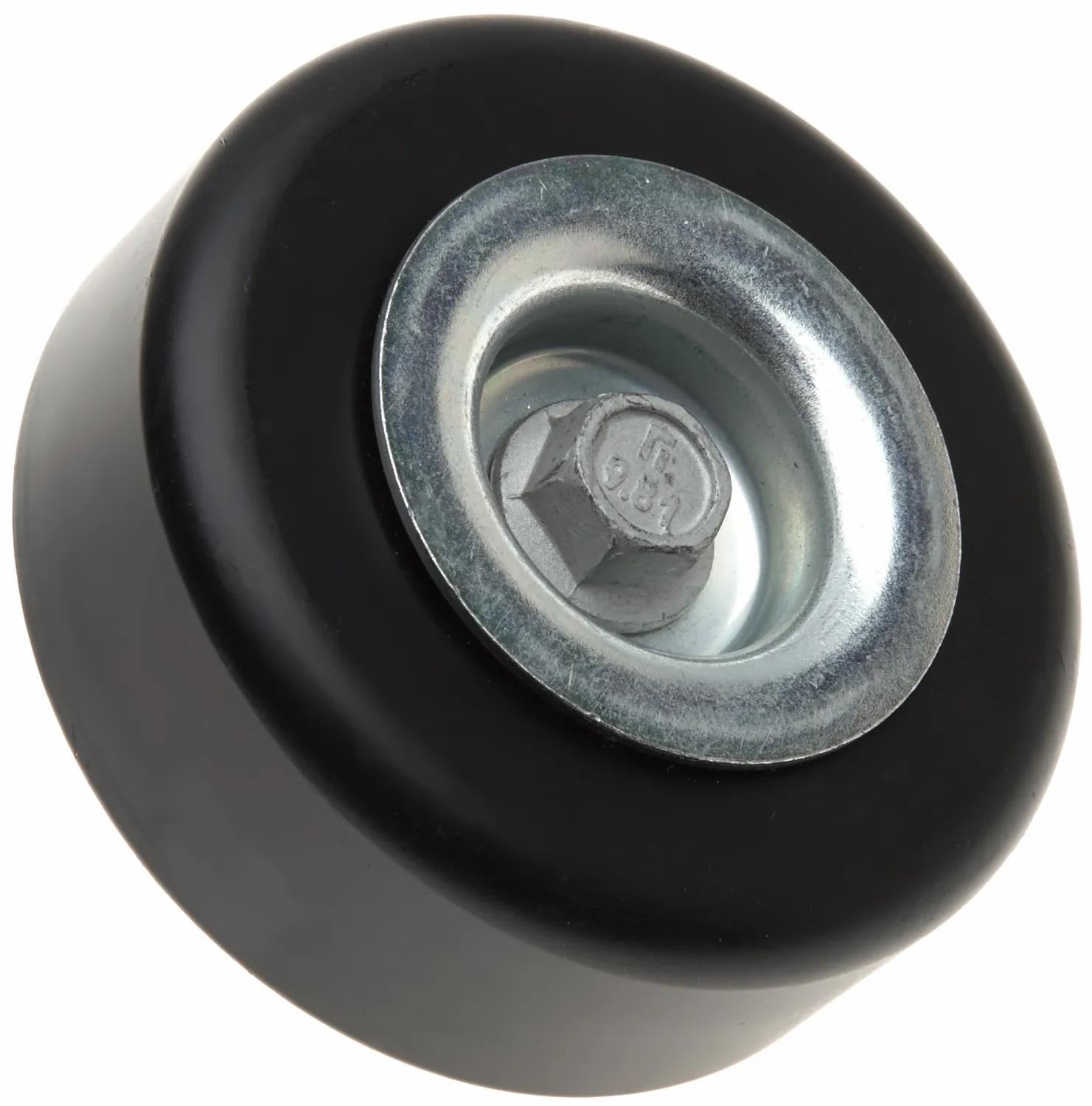

Belt Pulley, OD: 3-35/64 in, ID: 5/16 in, Contact: Smooth/Backside
#GAT36299
Product Overview
No Need to Reuse Old Hardware that Significantly Increases Installation Time.
Features & Benefits
- Steel or Thermoplastic Construction Provides High Durability & the Bearings are Designed for Application-Specific Speed & Load Requirements.
- The Supplier of UAP Inc Belts/Hose Time-Saver DriveAlign Idler Pulleys is a Leading Manufacturer of Original Equipment (OE).
- The Vibration Damping System Extends Life of the Tensioner & Other Accessory Components.
- Time-Saver Pulleys Feature Reliable Operation Under Severe Conditions Because TheyÆre Built to Resist Dirt, Salt & Under-Hood Contaminants.
- UAP Inc Belts/Hose Time-Saver DriveAlign Idler Pulleys are Specifically Designed to Reduce Installation Time.
- All Hardware is Attached for Quick & Convenient Installation.
Specifications
| Belt Top Width | 1-1/8 to 1-1/4 in (2.87 to 3.18 cm) |
| Contact Surface | Smooth/Backside |
| Contents | Pulley; Bolt; 17 mm Insert; Dust Shield; Retainer; Spacer |
| Inside Diameter | 5/16 in (0.79 cm) |
| Material | Steel |
| # of Grooves | 0 |
| # of Pulleys | 1 |
| Outside Diameter | 3-35/64 in (9.02 cm) |
| Pulley 1 Flanged | No |
| Pulley Bore ID | 43/64 in (1.71 cm) |
| Width | 1-7/32 in (3.1 cm) |
Interchanges & Equivalent parts:
| 36362990 |
| 49154 |
| 14714 |
| 352 |
| 900401 |
| 900401A |
| F5UZ3A719A |
| 12555609 |
| 12580771 |
| 12669569 |
| 36299 |
| 8010 |
| 8016 |
| 5352 |
| 362990 |
| 72697 |
| 80088 |
| 67033 |
