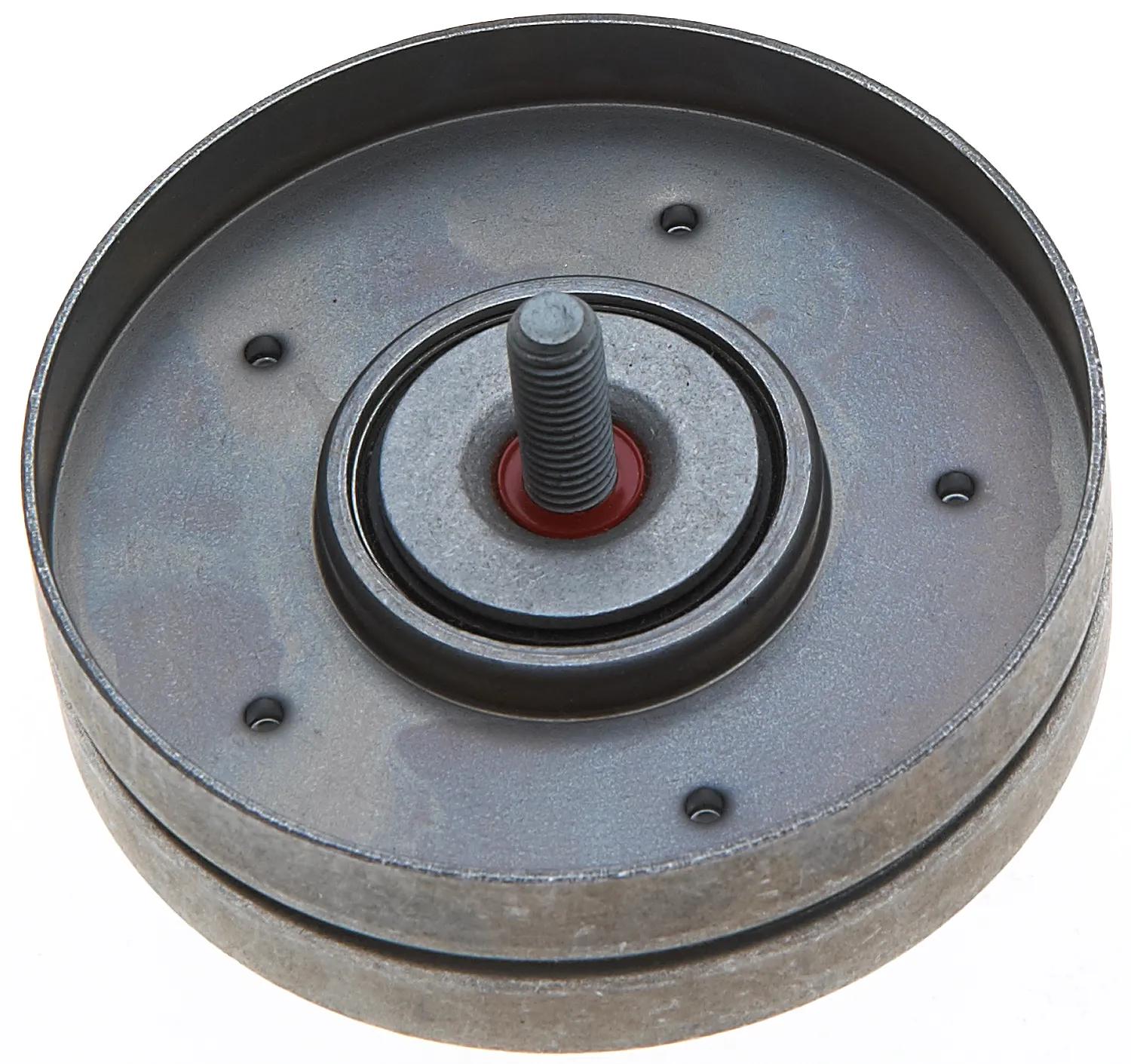

Belt Pulley, OD: 3-35/64 in, ID: 5/8 in, Contact: Smooth/Backside
#GAT36331
Product Overview
No Need to Reuse Old Hardware that Significantly Increases Installation Time.
Features & Benefits
- Steel or Thermoplastic Construction Provides High Durability & the Bearings are Designed for Application-Specific Speed & Load Requirements.
- The Supplier of UAP Inc Belts/Hose Time-Saver DriveAlign Idler Pulleys is a Leading Manufacturer of Original Equipment (OE).
- The Vibration Damping System Extends Life of the Tensioner & Other Accessory Components.
- Time-Saver Pulleys Feature Reliable Operation Under Severe Conditions Because TheyÆre Built to Resist Dirt, Salt & Under-Hood Contaminants.
- UAP Inc Belts/Hose Time-Saver DriveAlign Idler Pulleys are Specifically Designed to Reduce Installation Time.
- All Hardware is Attached for Quick & Convenient Installation.
Specifications
| Belt Top Width | 7/8 to 1 in (2.24 to 2.54 cm) |
| Contact Surface | Smooth/Backside |
| Contents | Pulley; Bolt; Dust Shield; Retainer |
| Inside Diameter | 5/8 in (1.6 cm) |
| Material | Steel |
| # of Grooves | 0 |
| # of Pulleys | 1 |
| Outside Diameter | 3-35/64 in (9.02 cm) |
| Pulley 1 Flanged | No |
| Pulley Bore ID | 43/64 in (1.71 cm) |
| Width | 63/64 in (2.49 cm) |
Interchanges & Equivalent parts:
| 36363310 |
| 4441134010 |
| 4441134020 |
| 5165 |
| 49194 |
| 06H903341C |
| 06H903341D |
| 89176 |
| 89557 |
| 951070 |
| 951070A |
| 165 |
| 36331 |
| 363310 |
| 231176 |
| 231557 |
| 8136 |
| 80382 |
| 76351 |
