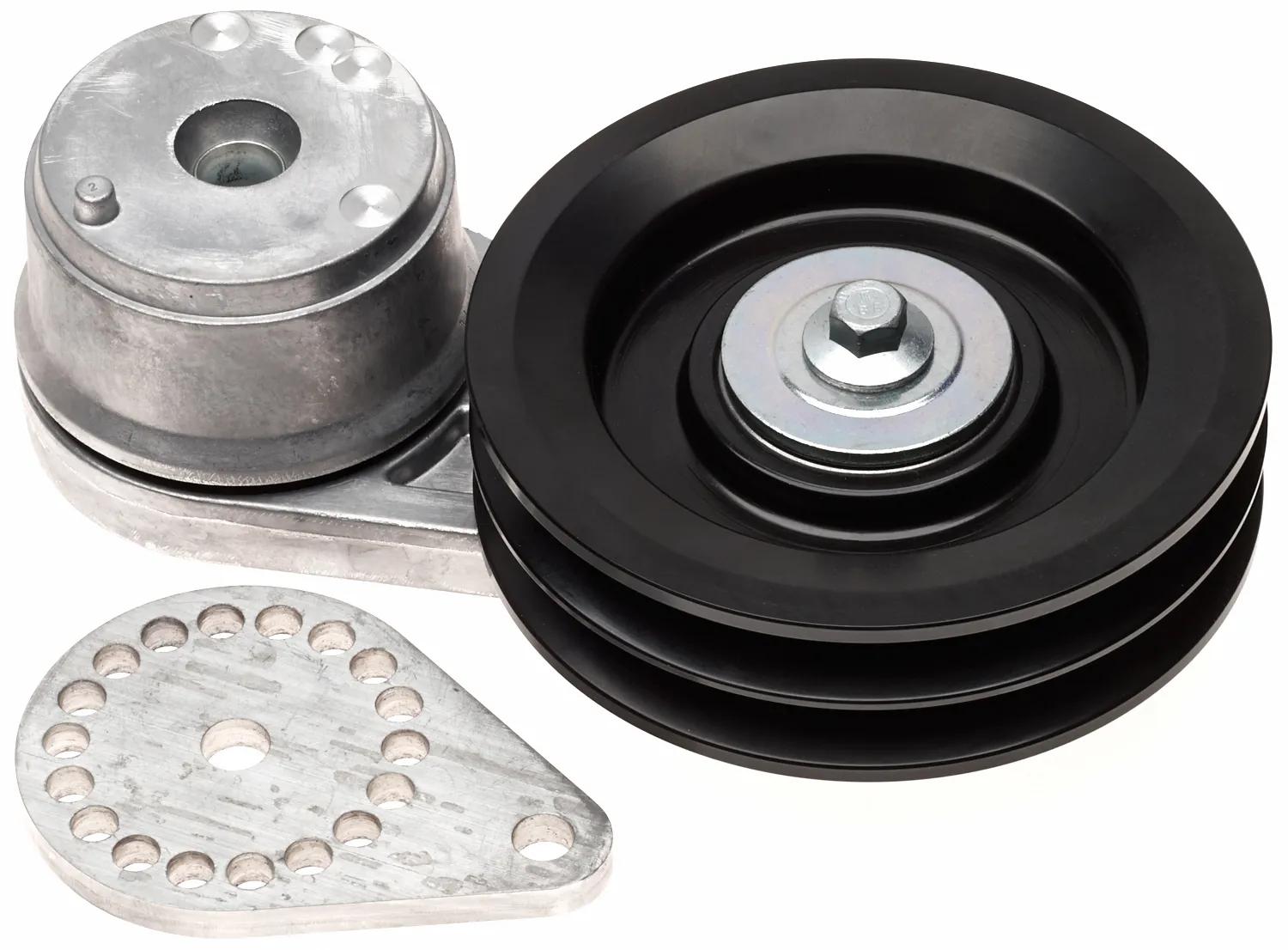

Belt Tensioner Assy, Hole: 1, Grooves: 2
#GAT38655
Product Overview
Every NAPA Tensioner Is Built To Rigid Tolerances & Specifications That Guarantee OE Fit, Form & Function.
Features & Benefits
- The Patented Vibration Damping System Improves Tensioners, Belts & Accessory Life While The Torsional Round Spring Design Provides Consistent Tension & Does Not Allow Contamination.
- UAP Inc Offers Full Line Coverage For Import, Domestic & Heavy-Duty Applications.
- You Can Count On UAP Inc To Supply Premium Quality DriveAlign Automatic Belt Tensioners You Can Depend On.
Specifications
| Belt Top Width | 1-1/2 to 1-5/8 in (3.81 to 4.14 cm) |
| Contact Surface | Double V-Grooved |
| Contents | Tensioner Assy,; Bracket |
| Material | Steel |
| Number Of Mounting Holes | 1 |
| # of Grooves | 2 |
| # of Pulleys | 1 |
| Outside Diameter | 5-3/16 in (13.18 cm) |
| Pulley 1 Flanged | No |
| Pulley Bore ID | 1-3/16 in (3.02 cm) |
| Width | 1-39/64 in (4.09 cm) |
Interchanges & Equivalent parts:
| 910581 |
| 910581A |
| 38655 |
| 49606 |
| ALT09275 |
