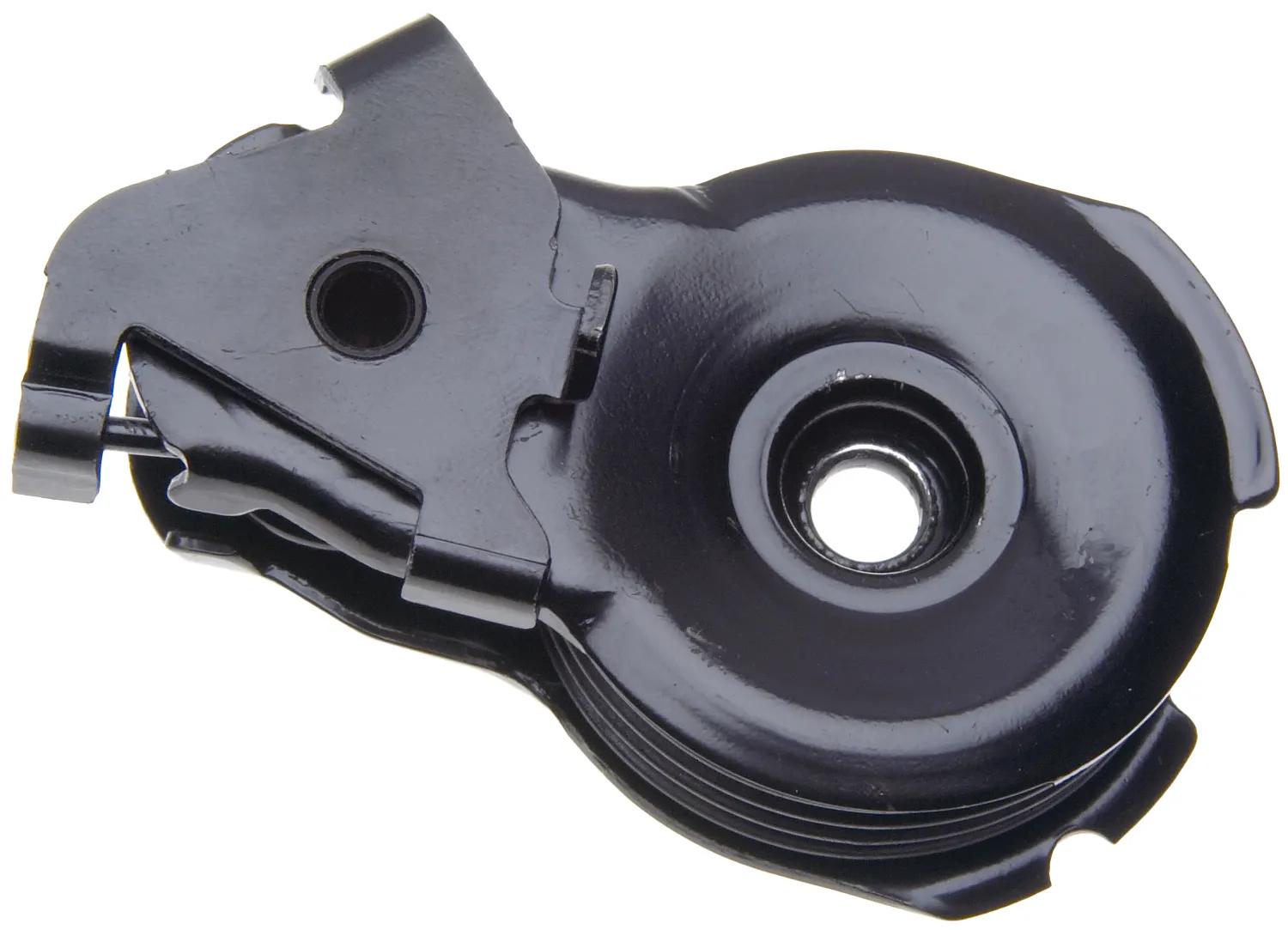

Belt Tensioner Assy, Hole: 1, Grooves: 3
#GAT38276
Product Overview
Every NAPA Tensioner Is Built To Rigid Tolerances & Specifications That Guarantee OE Fit, Form & Function.
Features & Benefits
- The Patented Vibration Damping System Improves Tensioners, Belts & Accessory Life While The Torsional Round Spring Design Provides Consistent Tension & Does Not Allow Contamination.
- UAP Inc Offers Full Line Coverage For Import, Domestic & Heavy-Duty Applications.
- You Can Count On UAP Inc To Supply Premium Quality DriveAlign Automatic Belt Tensioners You Can Depend On.
Specifications
| Belt Top Width | 1/2 to 5/8 in (1.27 to 1.6 cm) |
| Contact Surface | V-Ribbed Grooved |
| Contents | Tensioner Assy, |
| Material | Thermoplastic |
| Number Of Mounting Holes | 1 |
| # of Grooves | 3 |
| # of Pulleys | 1 |
| Outside Diameter | 2-3/64 in (5.21 cm) |
| Pulley 1 Flanged | Yes |
| Pulley Bore ID | 5/16 in (0.79 cm) |
| Width | 33/64 in (1.32 cm) |
Interchanges & Equivalent parts:
| 49338 |
| 45735 |
| 38276 |
| 89381 |
| 89381FN |
| 999238 |
| 999238A |
| F5RZ8W508A |
| AJ0415980 |
| AJ0415980A |
| F5RZ 8W508 A |
| GY0115980 |
| 305381 |
| 780343 |
| 11030024 |
| F5RZ8W508-A |
| F8RZ6B209-AA |
| ALT04436 |
| SK89381 |
