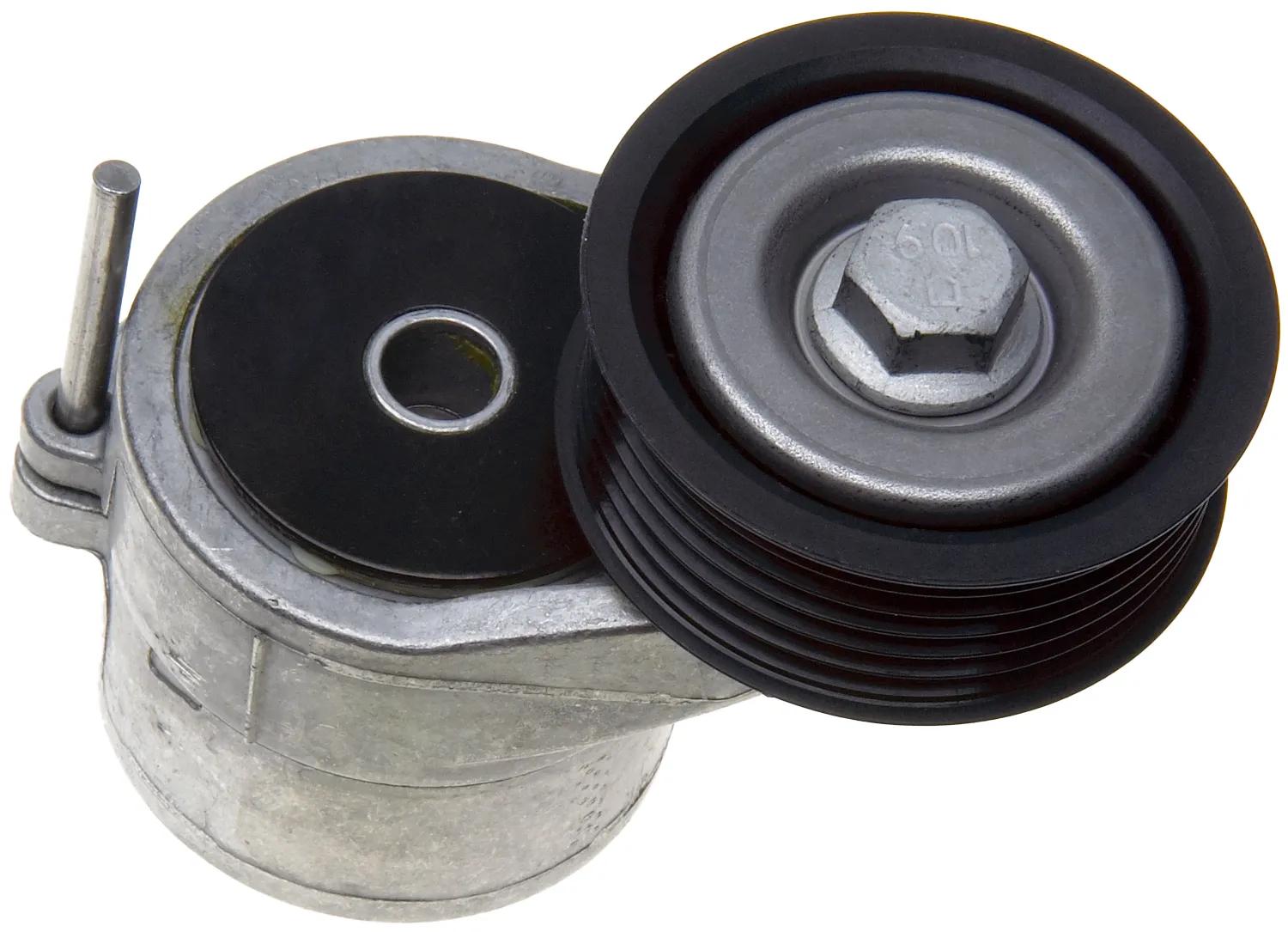

Belt Tensioner Assy, Hole: 1, Grooves: 6
#GAT38450
Sommaire du produit
Every NAPA Tensioner Is Built To Rigid Tolerances & Specifications That Guarantee OE Fit, Form & Function.
Caractéristiques et avantages
- The Patented Vibration Damping System Improves Tensioners, Belts & Accessory Life While The Torsional Round Spring Design Provides Consistent Tension & Does Not Allow Contamination.
- UAP Inc Offers Full Line Coverage For Import, Domestic & Heavy-Duty Applications.
- You Can Count On UAP Inc To Supply Premium Quality DriveAlign Automatic Belt Tensioners You Can Depend On.
Spécifications
| Belt Top Width | 7/8 to 1 in (2.24 to 2.54 cm) |
| Contact Surface | V-Ribbed Grooved |
| Contents | Tensioner Assy,; Dust Shield |
| Material | Thermoplastic |
| Number Of Mounting Holes | 1 |
| # of Grooves | 6 |
| # of Pulleys | 1 |
| Outside Diameter | 2-7/16 in (6.2 cm) |
| Pulley 1 Flanged | Yes |
| Pulley Bore ID | 43/64 in (1.71 cm) |
| Width | 63/64 in (2.49 cm) |
Interchanges et pièces équivalentes:
| 022145299C |
| 022145299H |
| 022145299L |
| 49401 |
| 38450 |
| 950489 |
| 950489A |
| 4092 |
| URO013510 |
| ALT09188 |
| 780040 |
