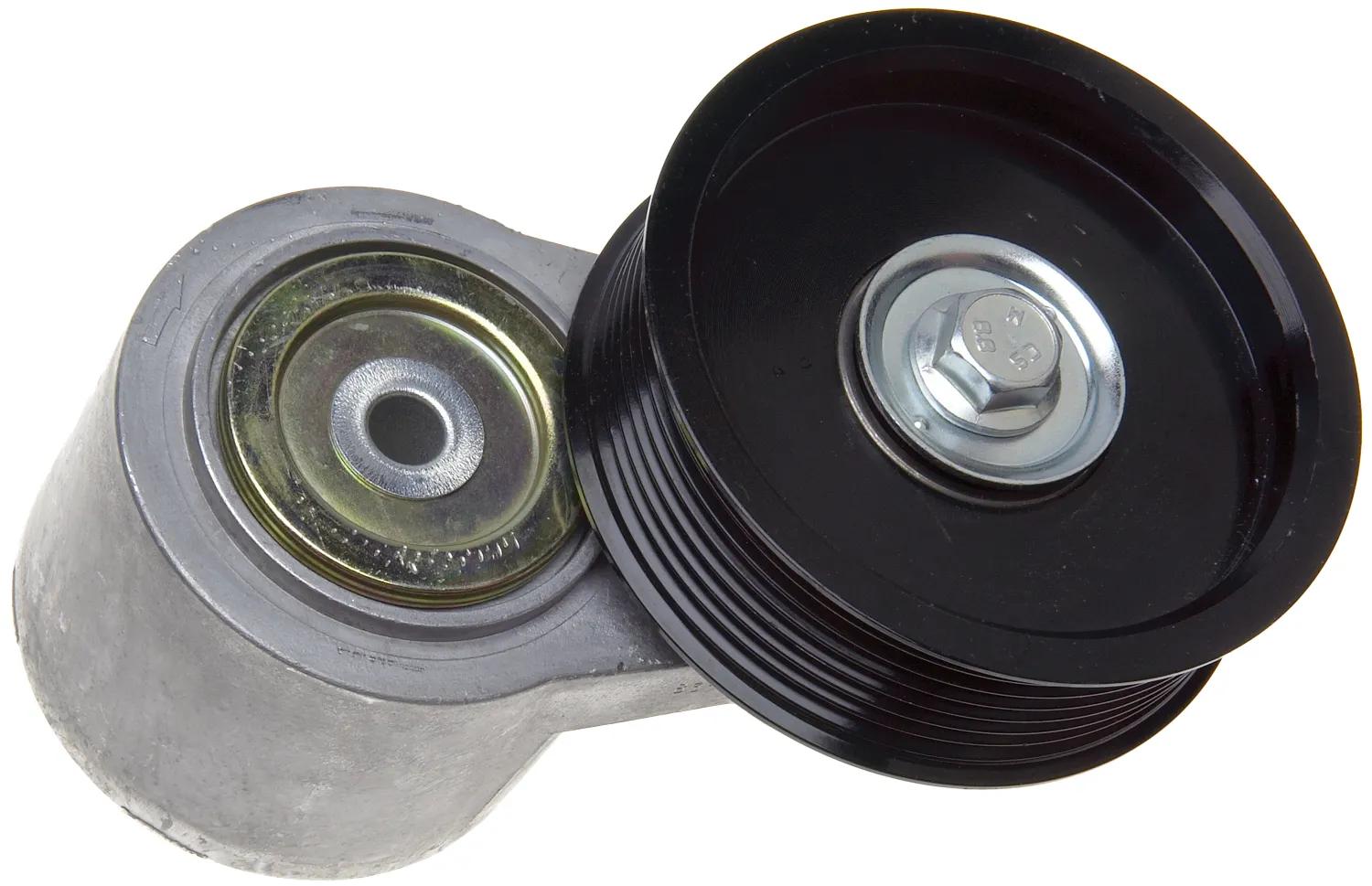

Belt Tensioner Assy, Hole: 1, Grooves: 7
#GAT38245
Product Overview
Every NAPA Tensioner Is Built To Rigid Tolerances & Specifications That Guarantee OE Fit, Form & Function.
Features & Benefits
- The Patented Vibration Damping System Improves Tensioners, Belts & Accessory Life While The Torsional Round Spring Design Provides Consistent Tension & Does Not Allow Contamination.
- UAP Inc Offers Full Line Coverage For Import, Domestic & Heavy-Duty Applications.
- You Can Count On UAP Inc To Supply Premium Quality DriveAlign Automatic Belt Tensioners You Can Depend On.
Specifications
| Belt Top Width | 1-1/4 to 1-3/8 in (3.18 to 3.51 cm) |
| Contact Surface | V-Ribbed Grooved |
| Contents | Tensioner Assy, |
| Material | Thermoplastic |
| Number Of Mounting Holes | 1 |
| # of Grooves | 7 |
| # of Pulleys | 1 |
| Outside Diameter | 3-15/64 in (8.2 cm) |
| Pulley 1 Flanged | Yes |
| Pulley Bore ID | 43/64 in (1.71 cm) |
| Width | 1-9/32 in (3.25 cm) |
Interchanges & Equivalent parts:
| 305287 |
| 49315 |
| 89287 |
| 89287FN |
| 999159 |
| 999159A |
| ERR6439 |
| FA99054 |
| 38245 |
