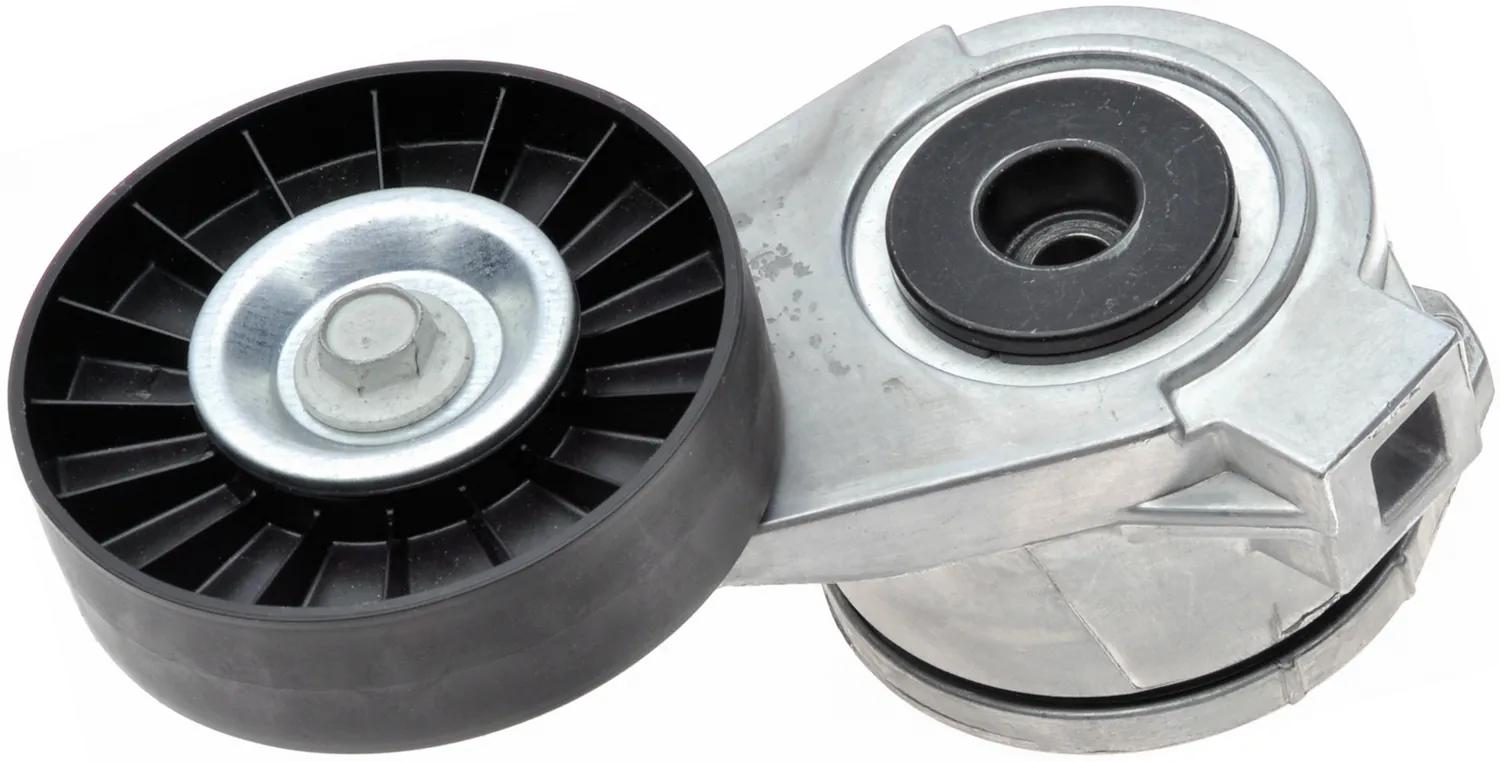

Belt Tensioner Assy, Hole: 1
#GAT38226
Product Overview
Every NAPA Tensioner Is Built To Rigid Tolerances & Specifications That Guarantee OE Fit, Form & Function.
Features & Benefits
- The Patented Vibration Damping System Improves Tensioners, Belts & Accessory Life While The Torsional Round Spring Design Provides Consistent Tension & Does Not Allow Contamination.
- UAP Inc Offers Full Line Coverage For Import, Domestic & Heavy-Duty Applications.
- You Can Count On UAP Inc To Supply Premium Quality DriveAlign Automatic Belt Tensioners You Can Depend On.
Specifications
| Belt Top Width | 7/8 to 1 in (2.24 to 2.54 cm) |
| Contact Surface | Smooth/Backside |
| Contents | Tensioner Assy, |
| Material | Thermoplastic |
| Number Of Mounting Holes | 1 |
| # of Pulleys | 1 |
| Outside Diameter | 3-35/64 in (9.02 cm) |
| Pulley 1 Flanged | No |
| Pulley Bore ID | 43/64 in (1.71 cm) |
| Width | 29/32 in (2.31 cm) |
Interchanges & Equivalent parts:
| 305355 |
| 49313 |
| 49364 |
| 999142 |
| 999142A |
| VKM34510 |
| FA99071 |
| 38226 |
| 38226M |
| 4898755 |
| 89355 |
| 89355FN |
| 780090 |
| 4671426 |
| ALT09118 |
| 55562632 |
