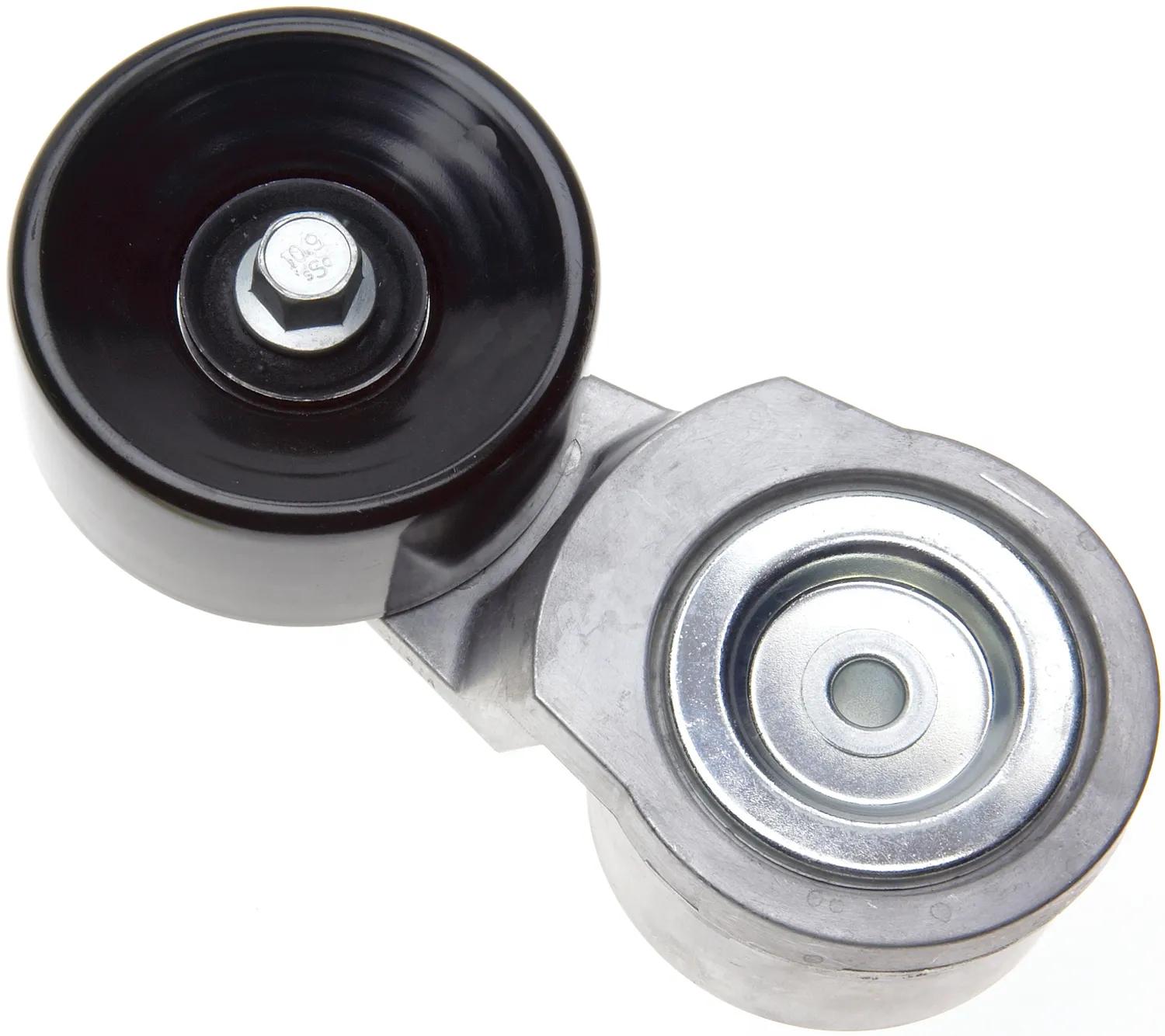

Belt Tensioner Assy, Hole: 1
#GAT38256
Product Overview
Every NAPA Tensioner Is Built To Rigid Tolerances & Specifications That Guarantee OE Fit, Form & Function.
Features & Benefits
- The Patented Vibration Damping System Improves Tensioners, Belts & Accessory Life While The Torsional Round Spring Design Provides Consistent Tension & Does Not Allow Contamination.
- UAP Inc Offers Full Line Coverage For Import, Domestic & Heavy-Duty Applications.
- You Can Count On UAP Inc To Supply Premium Quality DriveAlign Automatic Belt Tensioners You Can Depend On.
Specifications
| Belt Top Width | 1-1/4 to 1-3/8 in (3.18 to 3.51 cm) |
| Contact Surface | Smooth/Backside |
| Contents | Tensioner Assy, |
| Material | Steel |
| Number Of Mounting Holes | 1 |
| # of Pulleys | 1 |
| Outside Diameter | 3-35/64 in (9.02 cm) |
| Pulley 1 Flanged | No |
| Pulley Bore ID | 43/64 in (1.71 cm) |
| Width | 1-19/64 in (3.3 cm) |
Interchanges & Equivalent parts:
| 49326 |
| 89430 |
| 999117 |
| 999117A |
| GT38256 |
| 38256 |
| 15021742 |
| ALT09128 |
| 780120 |
